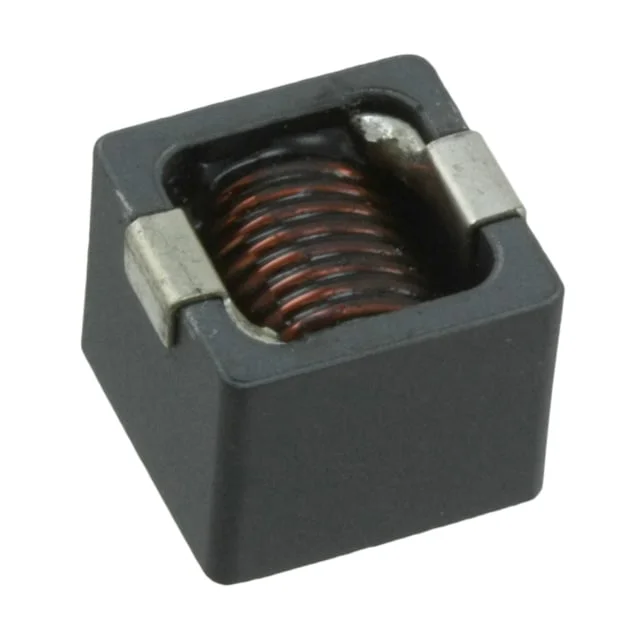

FIXED IND 3.3UH 13A 7.7 MOHM SMD
| Inductance | 3.3 µH |
| Tolerance | ±20% |
| Current Rating | 13 A |
| DC Resistance (DCR) | 7.7mOhm Max |
| saturationCurrent | 39A |
| Operating Temperature | -40°C ~ 125°C |
| Dimensions | 0.476" L x 0.449" W (12.10mm x 11.40mm) |
| Case / Size | Nonstandard |
| Supplier | Würth Elektronik |
| Description | FIXED IND 3.3UH 13A 7.7 MOHM SMD |
| Series | WE-HCC |
| productStatus | Active |
| typeConstruction | Drum Core, Wirewound |
| coreMaterial | Iron Powder |
| shielding | Shielded |
| qFactor | - |
| selfResonantFreq | 50MHz |
| ratings | - |
| testFrequency | 100 kHz |
| mountingType | Surface Mount |
| supplierDevicePackage | - |
| heightMax | 0.394" (10.00mm) |
| features | - |
