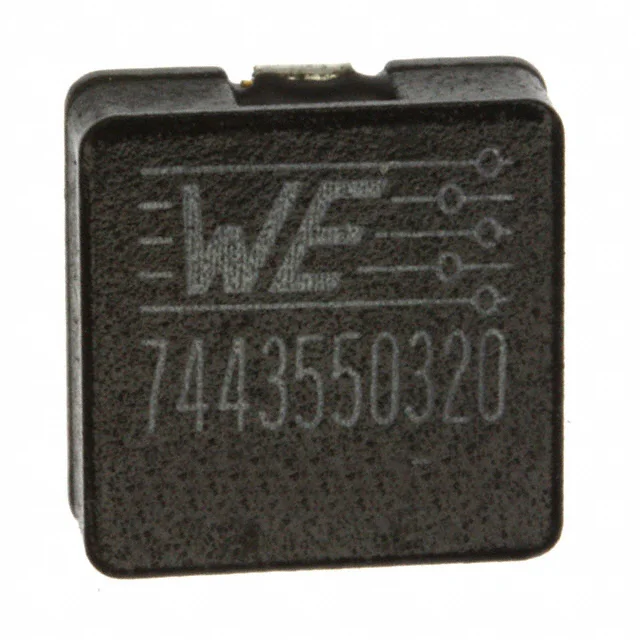

FIXED IND 3.2UH 16A 5.3 MOHM SMD
| Inductance | 3.2 µH |
| Tolerance | ±20% |
| Current Rating | 16 A |
| DC Resistance (DCR) | 5.3mOhm |
| saturationCurrent | 15A |
| Operating Temperature | -40°C ~ 155°C |
| Dimensions | 0.512" L x 0.504" W (13.00mm x 12.80mm) |
| Case / Size | Nonstandard |
| Supplier | Würth Elektronik |
| Description | FIXED IND 3.2UH 16A 5.3 MOHM SMD |
| Series | WE-HCI |
| productStatus | Active |
| typeConstruction | Wirewound |
| coreMaterial | - |
| shielding | Shielded |
| qFactor | - |
| selfResonantFreq | 34MHz |
| ratings | AEC-Q200 |
| testFrequency | 100 kHz |
| mountingType | Surface Mount |
| supplierDevicePackage | 1350 |
| heightMax | 0.197" (5.00mm) |
| features | - |
