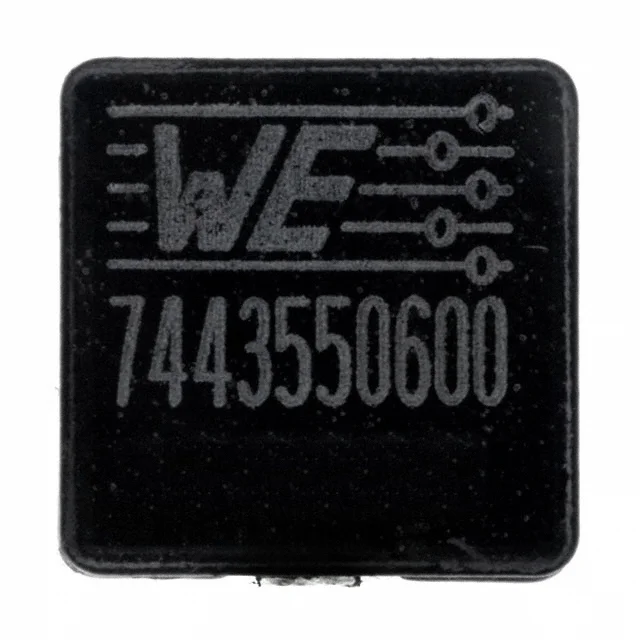

Description
FIXED IND 6UH 9.5A 13.5 MOHM SMD
Specifications
Parameter Guide
Understand the key electrical and mechanical specifications for 7443550600.
7443550600 has an inductance value of 6 µH. This value indicates how much magnetic energy the component can store and is one of the first parameters to compare when selecting an inductor.
7443550600 is rated for 9.5 A. Current rating helps determine whether the part can carry the expected DC or RMS current without excessive heating or saturation risk.
7443550600 lists a DC resistance of 13.5mOhm. Lower DCR usually reduces conduction loss and improves efficiency in power circuits.
7443550600 uses a package or case of Nonstandard. Package size affects PCB footprint, height clearance, thermal behavior, and compatibility with automated assembly.
Explore Related Datasheet Paths
Continue from 7443550600 to manufacturer, series, and broader datasheet collections.
Product Attributes
| Inductance | 6 µH |
| Tolerance | ±20% |
| Current Rating | 9.5 A |
| DC Resistance (DCR) | 13.5mOhm |
| Saturation Current | 11.5A |
| Operating Temperature | -40°C ~ 155°C |
| Dimensions | 0.512" L x 0.504" W (13.00mm x 12.80mm) |
| Case / Size | Nonstandard |
| Package / Case | Nonstandard |
| Supplier | Würth Elektronik |
| Description | FIXED IND 6UH 9.5A 13.5 MOHM SMD |
| Series | WE-HCI |
| Product Status | Active |
| Type / Construction | Wirewound |
| Shielding | Shielded |
| Self Resonant Frequency | 22MHz |
| Ratings | AEC-Q200 |
| Inductance Test Frequency | 100 kHz |
| Mounting Type | Surface Mount |
| Supplier Device Package | 1350 |
| Height - Seated (Max) | 0.197" (5.00mm) |
