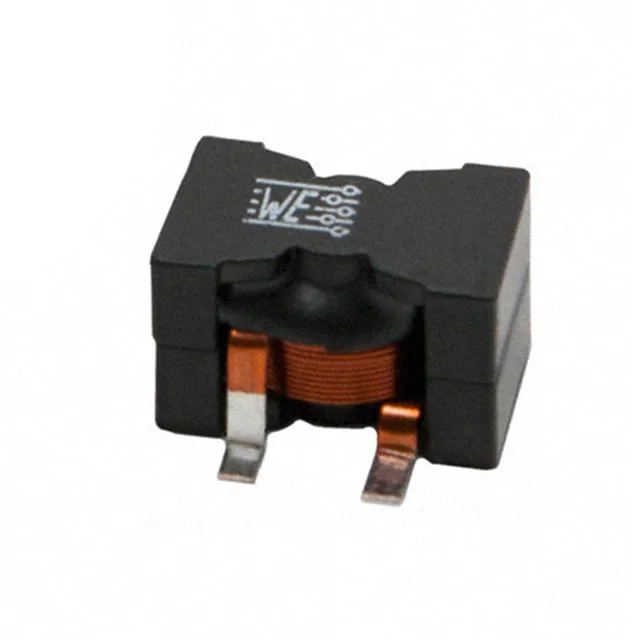

FIXED IND 1.4UH 31.5A 1.08 MOHM
| Inductance | 1.4 µH |
| Tolerance | ±15% |
| Current Rating | 31.5 A |
| DC Resistance (DCR) | 1.08mOhm |
| saturationCurrent | 60A |
| Operating Temperature | -40°C ~ 125°C |
| Dimensions | 0.846" L x 0.827" W (21.50mm x 21.00mm) |
| Case / Size | Nonstandard |
| Supplier | Würth Elektronik |
| Description | FIXED IND 1.4UH 31.5A 1.08 MOHM |
| Series | WE-HCF |
| productStatus | Active |
| typeConstruction | Drum Core, Wirewound |
| coreMaterial | Manganese Zinc Ferrite (MnZn) |
| shielding | Shielded |
| qFactor | - |
| selfResonantFreq | 52MHz |
| ratings | AEC-Q200 |
| testFrequency | 100 kHz |
| mountingType | Surface Mount |
| supplierDevicePackage | - |
| heightMax | 0.551" (14.00mm) |
| features | - |
