Description

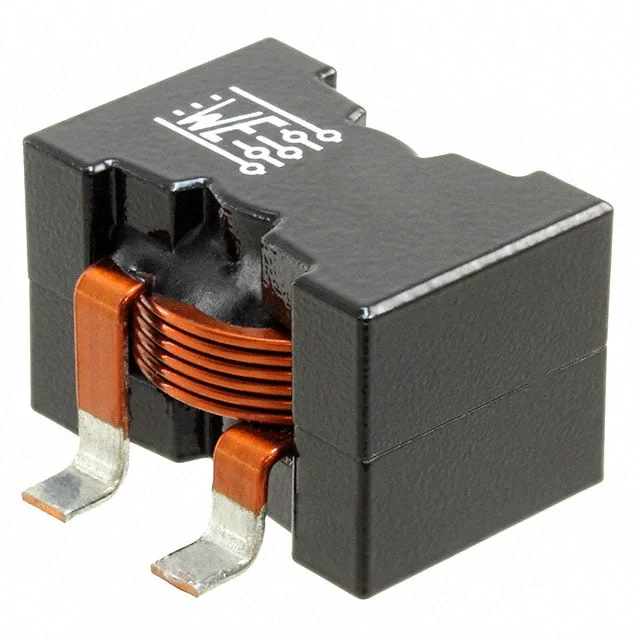

FIXED IND 4.7UH 30A 2.4 MOHM SMD
Specifications
Parameter Guide
Understand the key electrical and mechanical specifications for 7443640470.
7443640470 has an inductance value of 4.7 µH. This value indicates how much magnetic energy the component can store and is one of the first parameters to compare when selecting an inductor.
7443640470 is rated for 30 A. Current rating helps determine whether the part can carry the expected DC or RMS current without excessive heating or saturation risk.
7443640470 lists a DC resistance of 2.4mOhm. Lower DCR usually reduces conduction loss and improves efficiency in power circuits.
7443640470 uses a package or case of Nonstandard. Package size affects PCB footprint, height clearance, thermal behavior, and compatibility with automated assembly.
Explore Related Datasheet Paths
Continue from 7443640470 to manufacturer, series, and broader datasheet collections.
Product Attributes
| Inductance | 4.7 µH |
| Tolerance | ±15% |
| Current Rating | 30 A |
| DC Resistance (DCR) | 2.4mOhm |
| Saturation Current | 78A |
| Operating Temperature | -40°C ~ 125°C |
| Dimensions | 1.122" L x 0.768" W (28.50mm x 19.50mm) |
| Case / Size | Nonstandard |
| Package / Case | Nonstandard |
| Supplier | Würth Elektronik |
| Description | FIXED IND 4.7UH 30A 2.4 MOHM SMD |
| Series | WE-HCF |
| Product Status | Active |
| Type / Construction | Drum Core, Wirewound |
| Core Material | Manganese Zinc Ferrite (MnZn) |
| Shielding | Shielded |
| Self Resonant Frequency | 20MHz |
| Ratings | AEC-Q200 |
| Inductance Test Frequency | 100 kHz |
| Mounting Type | Surface Mount |
| Supplier Device Package | 2818 |
| Height - Seated (Max) | 0.728" (18.50mm) |
