Description

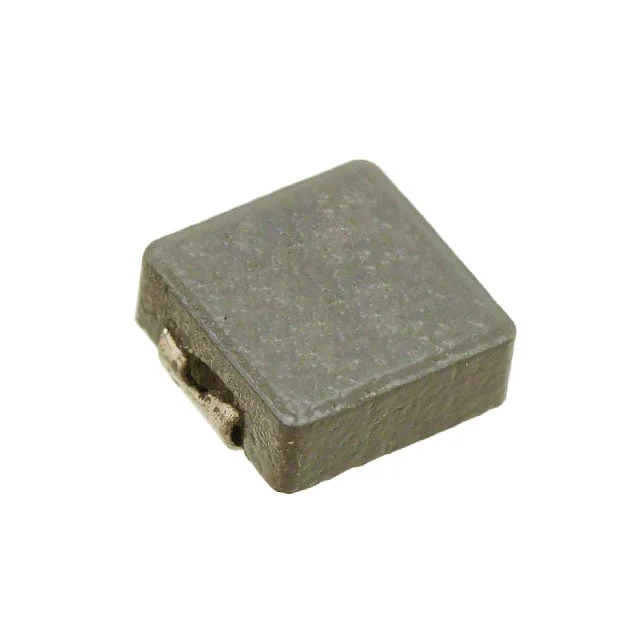

FIXED IND 220NH 15A 2.8 MOHM SMD
Specifications
Parameter Guide
Understand the key electrical and mechanical specifications for 744373460022.
744373460022 has an inductance value of 220 nH. This value indicates how much magnetic energy the component can store and is one of the first parameters to compare when selecting an inductor.
744373460022 is rated for 15 A. Current rating helps determine whether the part can carry the expected DC or RMS current without excessive heating or saturation risk.
744373460022 lists a DC resistance of 2.8mOhm Max. Lower DCR usually reduces conduction loss and improves efficiency in power circuits.
744373460022 uses a package or case of 2-SMD. Package size affects PCB footprint, height clearance, thermal behavior, and compatibility with automated assembly.
Explore Related Datasheet Paths
Continue from 744373460022 to manufacturer, series, and broader datasheet collections.
Product Attributes
| Inductance | 220 nH |
| Tolerance | ±30% |
| Current Rating | 15 A |
| DC Resistance (DCR) | 2.8mOhm Max |
| Saturation Current | 54.3A |
| Operating Temperature | -40°C ~ 125°C |
| Dimensions | 0.287" L x 0.260" W (7.30mm x 6.60mm) |
| Case / Size | 2-SMD |
| Package / Case | 2-SMD |
| Supplier | Würth Elektronik |
| Description | FIXED IND 220NH 15A 2.8 MOHM SMD |
| Series | WE-LHMI |
| Product Status | Active |
| Type / Construction | Molded |
| Core Material | Iron Powder |
| Shielding | Shielded |
| Self Resonant Frequency | 149MHz |
| Inductance Test Frequency | 100 kHz |
| Mounting Type | Surface Mount |
| Height - Seated (Max) | 0.118" (3.00mm) |
