Description

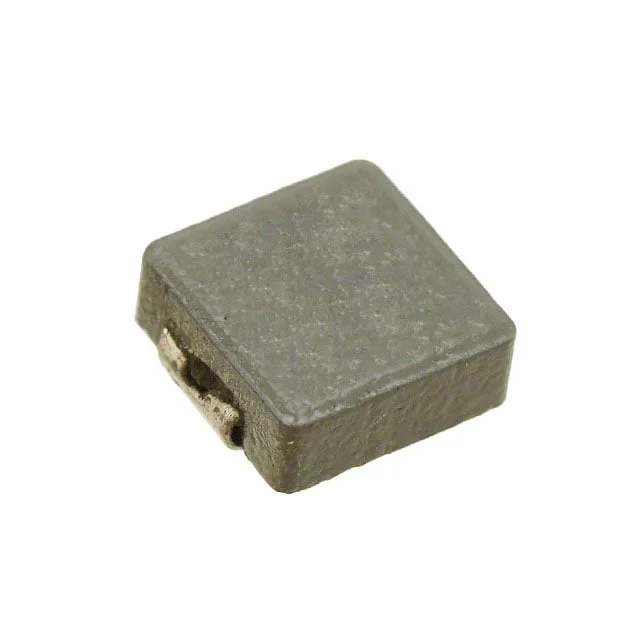

FIXED IND 1.8UH 6.8A 17 MOHM SMD
Specifications
Parameter Guide
Understand the key electrical and mechanical specifications for 74437346018.
74437346018 has an inductance value of 1.8 µH. This value indicates how much magnetic energy the component can store and is one of the first parameters to compare when selecting an inductor.
74437346018 is rated for 6.8 A. Current rating helps determine whether the part can carry the expected DC or RMS current without excessive heating or saturation risk.
74437346018 lists a DC resistance of 17mOhm Max. Lower DCR usually reduces conduction loss and improves efficiency in power circuits.
74437346018 uses a package or case of 2-SMD. Package size affects PCB footprint, height clearance, thermal behavior, and compatibility with automated assembly.
Explore Related Datasheet Paths
Continue from 74437346018 to manufacturer, series, and broader datasheet collections.
Product Attributes
| Inductance | 1.8 µH |
| Tolerance | ±20% |
| Current Rating | 6.8 A |
| DC Resistance (DCR) | 17mOhm Max |
| Saturation Current | 21.4A |
| Operating Temperature | -40°C ~ 125°C |
| Dimensions | 0.287" L x 0.260" W (7.30mm x 6.60mm) |
| Case / Size | 2-SMD |
| Package / Case | 2-SMD |
| Supplier | Würth Elektronik |
| Description | FIXED IND 1.8UH 6.8A 17 MOHM SMD |
| Series | WE-LHMI |
| Product Status | Active |
| Type / Construction | Molded |
| Core Material | Iron Powder |
| Shielding | Shielded |
| Self Resonant Frequency | 35MHz |
| Inductance Test Frequency | 100 kHz |
| Mounting Type | Surface Mount |
| Height - Seated (Max) | 0.122" (3.10mm) |
