Description

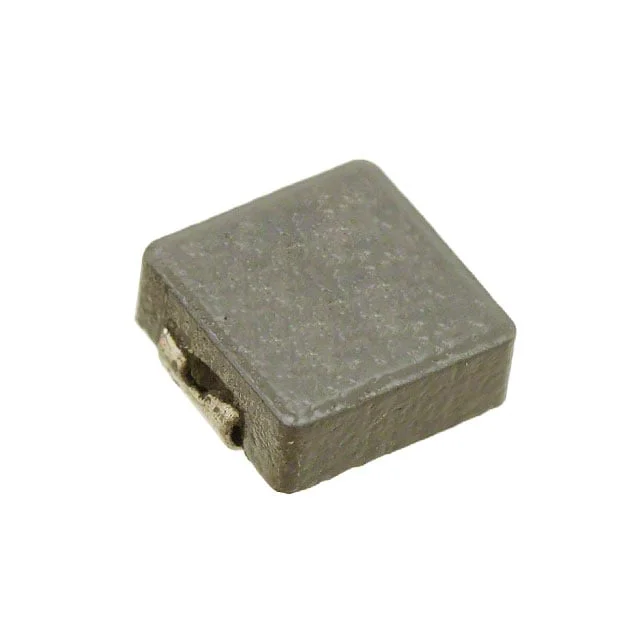

FIXED IND 8.2UH 3.25A 68 MOHM
Specifications
Parameter Guide
Understand the key electrical and mechanical specifications for 74437346082.
74437346082 has an inductance value of 8.2 µH. This value indicates how much magnetic energy the component can store and is one of the first parameters to compare when selecting an inductor.
74437346082 is rated for 3.25 A. Current rating helps determine whether the part can carry the expected DC or RMS current without excessive heating or saturation risk.
74437346082 lists a DC resistance of 68mOhm Max. Lower DCR usually reduces conduction loss and improves efficiency in power circuits.
74437346082 uses a package or case of 2-SMD. Package size affects PCB footprint, height clearance, thermal behavior, and compatibility with automated assembly.
Explore Related Datasheet Paths
Continue from 74437346082 to manufacturer, series, and broader datasheet collections.
Product Attributes
| Inductance | 8.2 µH |
| Tolerance | ±20% |
| Current Rating | 3.25 A |
| DC Resistance (DCR) | 68mOhm Max |
| Saturation Current | 10.1A |
| Operating Temperature | -40°C ~ 125°C |
| Dimensions | 0.287" L x 0.260" W (7.30mm x 6.60mm) |
| Case / Size | 2-SMD |
| Package / Case | 2-SMD |
| Supplier | Würth Elektronik |
| Description | FIXED IND 8.2UH 3.25A 68 MOHM |
| Series | WE-LHMI |
| Product Status | Active |
| Type / Construction | Molded |
| Core Material | Iron Powder |
| Shielding | Shielded |
| Self Resonant Frequency | 17MHz |
| Inductance Test Frequency | 100 kHz |
| Mounting Type | Surface Mount |
| Height - Seated (Max) | 0.122" (3.10mm) |
