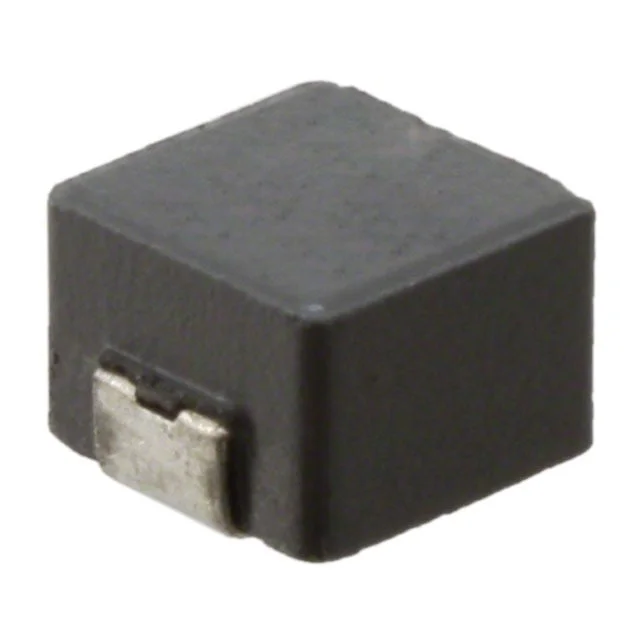

Description
FIXED IND 820NH 11.25A 4.9 MOHM
Specifications
Parameter Guide
Understand the key electrical and mechanical specifications for 744373490082.
744373490082 has an inductance value of 820 nH. This value indicates how much magnetic energy the component can store and is one of the first parameters to compare when selecting an inductor.
744373490082 is rated for 11.25 A. Current rating helps determine whether the part can carry the expected DC or RMS current without excessive heating or saturation risk.
744373490082 lists a DC resistance of 4.9mOhm Max. Lower DCR usually reduces conduction loss and improves efficiency in power circuits.
744373490082 uses a package or case of 2-SMD. Package size affects PCB footprint, height clearance, thermal behavior, and compatibility with automated assembly.
Explore Related Datasheet Paths
Continue from 744373490082 to manufacturer, series, and broader datasheet collections.
Product Attributes
| Inductance | 820 nH |
| Tolerance | ±20% |
| Current Rating | 11.25 A |
| DC Resistance (DCR) | 4.9mOhm Max |
| Saturation Current | 31.6A |
| Operating Temperature | -40°C ~ 125°C |
| Dimensions | 0.287" L x 0.260" W (7.30mm x 6.60mm) |
| Case / Size | 2-SMD |
| Package / Case | 2-SMD |
| Supplier | Würth Elektronik |
| Description | FIXED IND 820NH 11.25A 4.9 MOHM |
| Series | WE-LHMI |
| Product Status | Active |
| Type / Construction | Molded |
| Core Material | Iron Powder |
| Shielding | Shielded |
| Self Resonant Frequency | 70MHz |
| Inductance Test Frequency | 100 kHz |
| Mounting Type | Surface Mount |
| Height - Seated (Max) | 0.197" (5.00mm) |
