Description

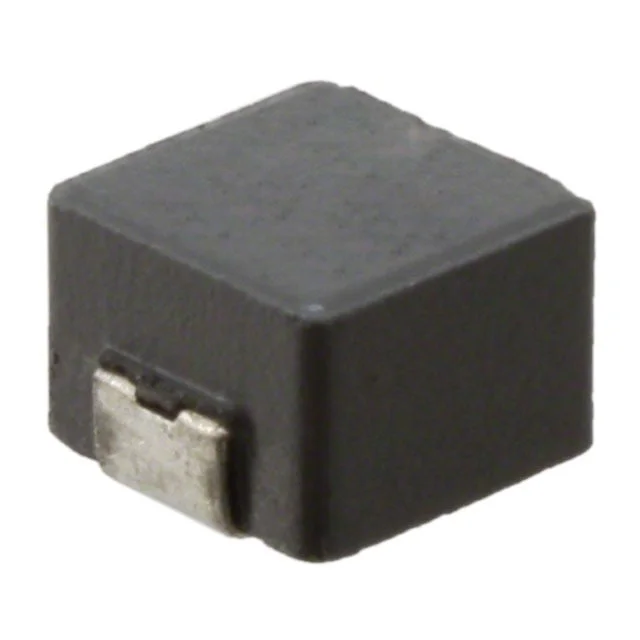

FIXED IND 5.6UH 3.75A 49 MOHM
Specifications
Parameter Guide
Understand the key electrical and mechanical specifications for 74437349056.
74437349056 has an inductance value of 5.6 µH. This value indicates how much magnetic energy the component can store and is one of the first parameters to compare when selecting an inductor.
74437349056 is rated for 3.75 A. Current rating helps determine whether the part can carry the expected DC or RMS current without excessive heating or saturation risk.
74437349056 lists a DC resistance of 49mOhm Max. Lower DCR usually reduces conduction loss and improves efficiency in power circuits.
74437349056 uses a package or case of 2-SMD. Package size affects PCB footprint, height clearance, thermal behavior, and compatibility with automated assembly.
Explore Related Datasheet Paths
Continue from 74437349056 to manufacturer, series, and broader datasheet collections.
Product Attributes
| Inductance | 5.6 µH |
| Tolerance | ±20% |
| Current Rating | 3.75 A |
| DC Resistance (DCR) | 49mOhm Max |
| Saturation Current | 16.5A |
| Operating Temperature | -40°C ~ 125°C |
| Dimensions | 0.287" L x 0.260" W (7.30mm x 6.60mm) |
| Case / Size | 2-SMD |
| Package / Case | 2-SMD |
| Supplier | Würth Elektronik |
| Description | FIXED IND 5.6UH 3.75A 49 MOHM |
| Series | WE-LHMI |
| Product Status | Active |
| Type / Construction | Molded |
| Core Material | Iron Powder |
| Shielding | Shielded |
| Self Resonant Frequency | 17MHz |
| Inductance Test Frequency | 100 kHz |
| Mounting Type | Surface Mount |
| Height - Seated (Max) | 0.197" (5.00mm) |
