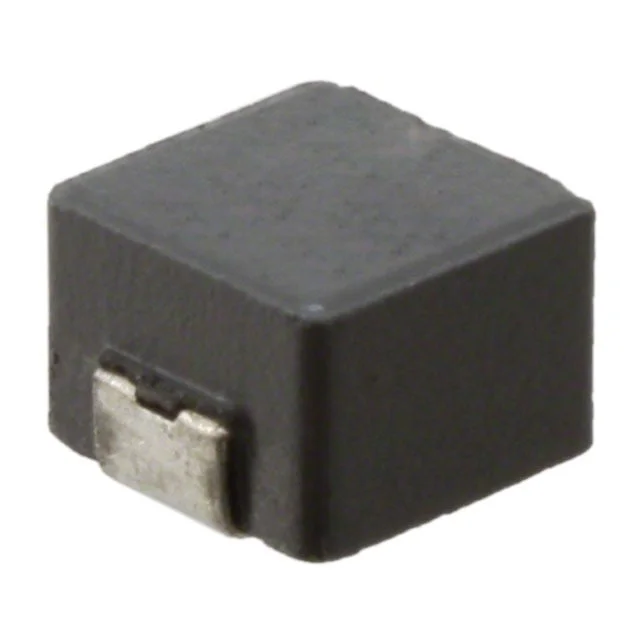

FIXED IND 56UH 1.4A 396 MOHM SMD
| Inductance | 56 µH |
| Tolerance | ±20% |
| Current Rating | 1.4 A |
| DC Resistance (DCR) | 396mOhm Max |
| saturationCurrent | 2.7A |
| Operating Temperature | -40°C ~ 125°C |
| Dimensions | 0.299" L x 0.272" W (7.60mm x 6.90mm) |
| Case / Size | 2-SMD |
| Supplier | Würth Elektronik |
| Description | FIXED IND 56UH 1.4A 396 MOHM SMD |
| Series | WE-LHMI |
| productStatus | Active |
| typeConstruction | Molded |
| coreMaterial | Iron Powder |
| shielding | Shielded |
| qFactor | - |
| selfResonantFreq | 6MHz |
| ratings | - |
| testFrequency | 100 kHz |
| mountingType | Surface Mount |
| supplierDevicePackage | 7050 |
| heightMax | 0.197" (5.00mm) |
| features | - |
