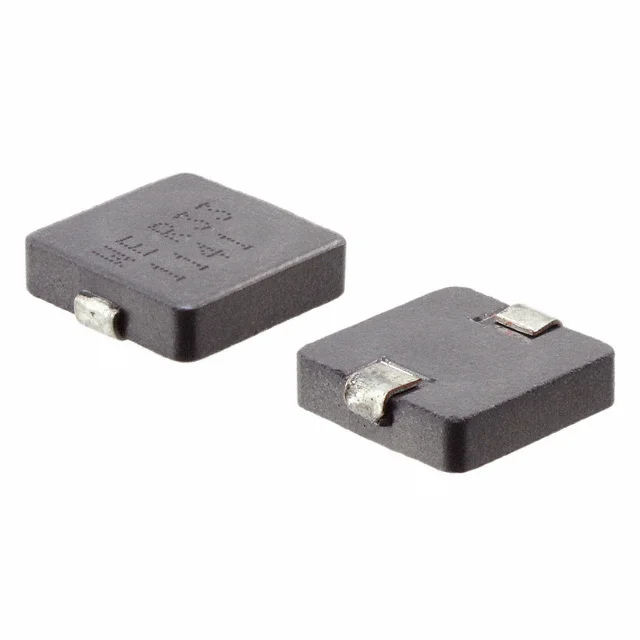

FIXED IND 4.7UH 7.5A 15 MOHM SMD
| Inductance | 4.7 µH |
| Tolerance | ±20% |
| Current Rating | 7.5 A |
| DC Resistance (DCR) | 15mOhm Max |
| saturationCurrent | 25.1A |
| Operating Temperature | -40°C ~ 125°C |
| Dimensions | 0.531" L x 0.496" W (13.50mm x 12.60mm) |
| Case / Size | 2-SMD |
| Supplier | Würth Elektronik |
| Description | FIXED IND 4.7UH 7.5A 15 MOHM SMD |
| Series | WE-LHMI |
| productStatus | Active |
| typeConstruction | Molded |
| coreMaterial | Iron Powder |
| shielding | Shielded |
| qFactor | - |
| selfResonantFreq | 13MHz |
| ratings | - |
| testFrequency | 100 kHz |
| mountingType | Surface Mount |
| supplierDevicePackage | - |
| heightMax | 0.138" (3.50mm) |
| features | - |
