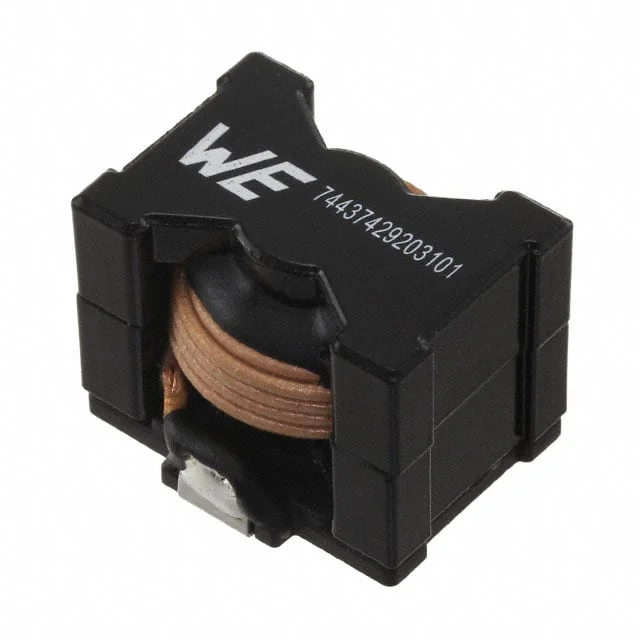

FIXED IND 68UH 11.2A 22.2 MOHM
| Inductance | 68 µH |
| Tolerance | ±20% |
| Current Rating | 11.2 A |
| DC Resistance (DCR) | 22.2mOhm |
| saturationCurrent | 10.7A |
| Operating Temperature | -40°C ~ 125°C |
| Dimensions | 1.102" L x 0.984" W (28.00mm x 25.00mm) |
| Case / Size | Nonstandard |
| Supplier | Würth Elektronik |
| Description | FIXED IND 68UH 11.2A 22.2 MOHM |
| Series | WE-HCF |
| productStatus | Active |
| typeConstruction | Drum Core, Wirewound |
| coreMaterial | Manganese Zinc Ferrite (MnZn) |
| shielding | Shielded |
| qFactor | - |
| selfResonantFreq | 5.3MHz |
| ratings | AEC-Q200 |
| testFrequency | 100 kHz |
| mountingType | Surface Mount |
| supplierDevicePackage | 2920 |
| heightMax | 0.807" (20.50mm) |
| features | - |
