Description

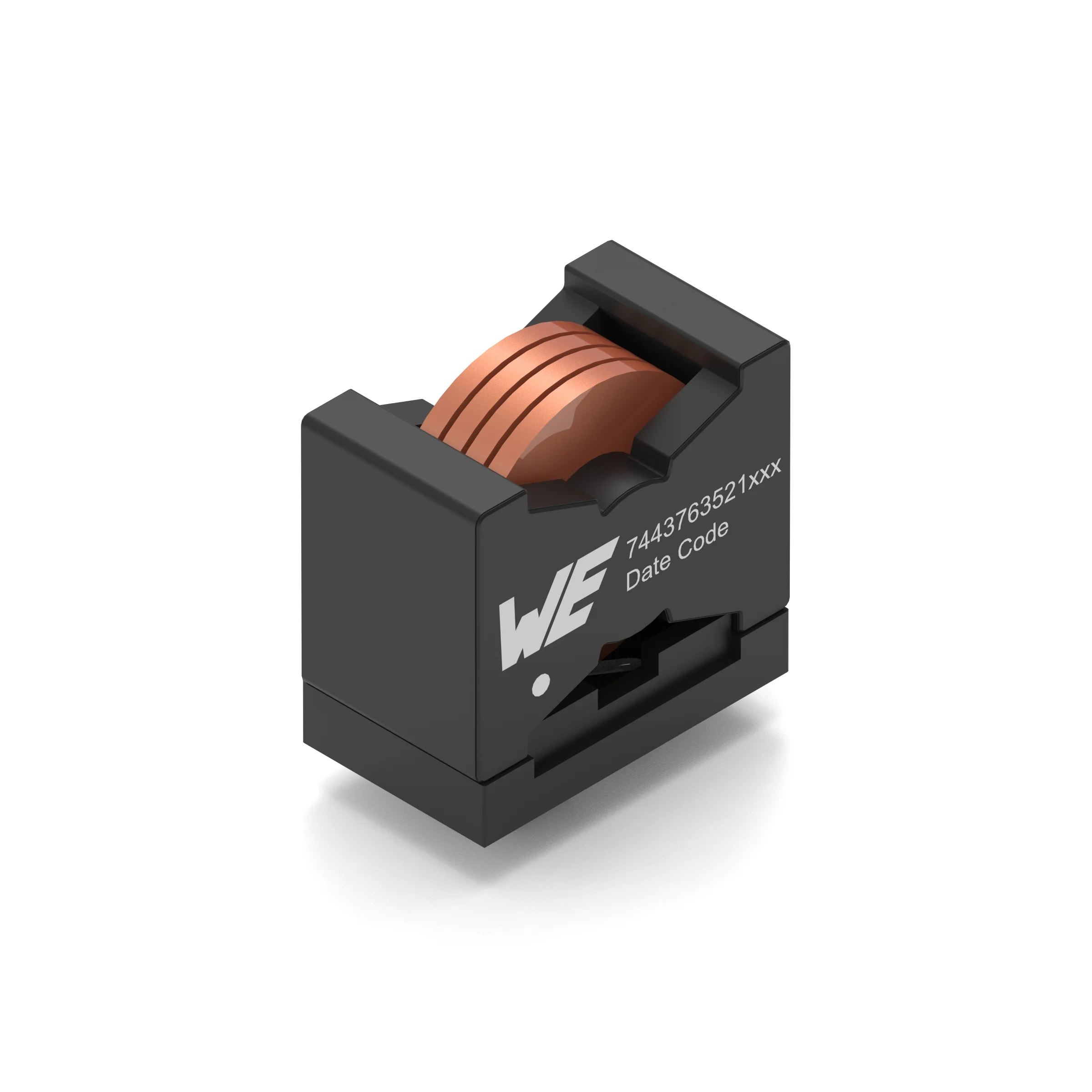

FIXED IND 1.2UH 85.7A 0.21 MOHM
Specifications
Parameter Guide
Understand the key electrical and mechanical specifications for 74437625200122.
74437625200122 has an inductance value of 1.2 µH. This value indicates how much magnetic energy the component can store and is one of the first parameters to compare when selecting an inductor.
74437625200122 is rated for 85.7 A. Current rating helps determine whether the part can carry the expected DC or RMS current without excessive heating or saturation risk.
74437625200122 lists a DC resistance of 0.21mOhm. Lower DCR usually reduces conduction loss and improves efficiency in power circuits.
74437625200122 uses a package or case of Radial. Package size affects PCB footprint, height clearance, thermal behavior, and compatibility with automated assembly.
Explore Related Datasheet Paths
Continue from 74437625200122 to manufacturer, series, and broader datasheet collections.
Product Attributes
| Inductance | 1.2 µH |
| Tolerance | ±20% |
| Current Rating | 85.7 A |
| DC Resistance (DCR) | 0.21mOhm |
| Saturation Current | 156.9A |
| Operating Temperature | -40°C ~ 125°C |
| Dimensions | 0.984" L x 0.819" W (25.00mm x 20.80mm) |
| Case / Size | Radial |
| Package / Case | Radial |
| Supplier | Würth Elektronik |
| Description | FIXED IND 1.2UH 85.7A 0.21 MOHM |
| Series | WE-HCFT |
| Product Status | Active |
| Type / Construction | Wirewound |
| Core Material | Metal |
| Shielding | Shielded |
| Self Resonant Frequency | 89.75MHz |
| Inductance Test Frequency | 100 kHz |
| Mounting Type | Through Hole |
| Supplier Device Package | Radial |
| Height - Seated (Max) | 0.860" (21.85mm) |
