Description

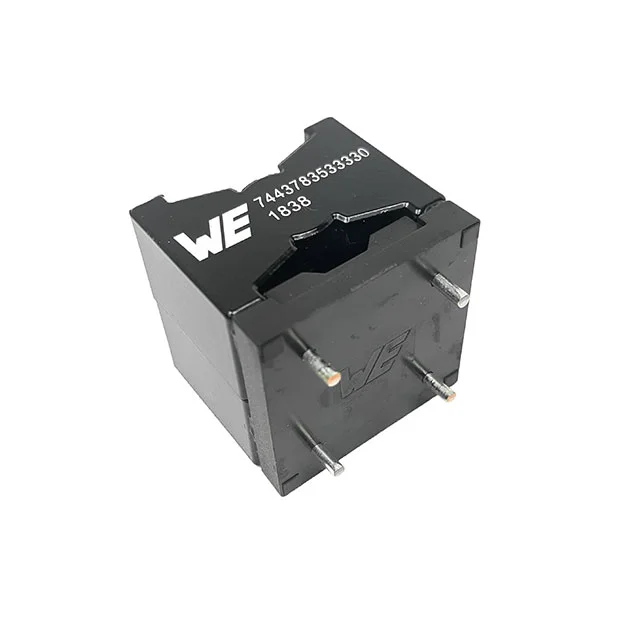

FIXED IND 33UH 22A 9.9 MOHM TH
Specifications
Parameter Guide
Understand the key electrical and mechanical specifications for 7443783533330.
7443783533330 has an inductance value of 33 µH. This value indicates how much magnetic energy the component can store and is one of the first parameters to compare when selecting an inductor.
7443783533330 is rated for 22 A. Current rating helps determine whether the part can carry the expected DC or RMS current without excessive heating or saturation risk.
7443783533330 lists a DC resistance of 9.9mOhm Max. Lower DCR usually reduces conduction loss and improves efficiency in power circuits.
7443783533330 uses a package or case of Nonstandard. Package size affects PCB footprint, height clearance, thermal behavior, and compatibility with automated assembly.
Explore Related Datasheet Paths
Continue from 7443783533330 to manufacturer, series, and broader datasheet collections.
Product Attributes
| Inductance | 33 µH |
| Tolerance | ±20% |
| Current Rating | 22 A |
| DC Resistance (DCR) | 9.9mOhm Max |
| Saturation Current | 39.2A |
| Operating Temperature | -40°C ~ 125°C |
| Dimensions | 1.417" L x 1.358" W (36.00mm x 34.50mm) |
| Case / Size | Nonstandard |
| Package / Case | Nonstandard |
| Supplier | Würth Elektronik |
| Description | FIXED IND 33UH 22A 9.9 MOHM TH |
| Series | WE-HCFT |
| Product Status | Active |
| Type / Construction | Drum Core, Wirewound |
| Core Material | Manganese Zinc Ferrite (MnZn) |
| Shielding | Shielded |
| Self Resonant Frequency | 6.08MHz |
| Inductance Test Frequency | 100 kHz |
| Mounting Type | Through Hole |
| Height - Seated (Max) | 1.378" (35.00mm) |
