Description

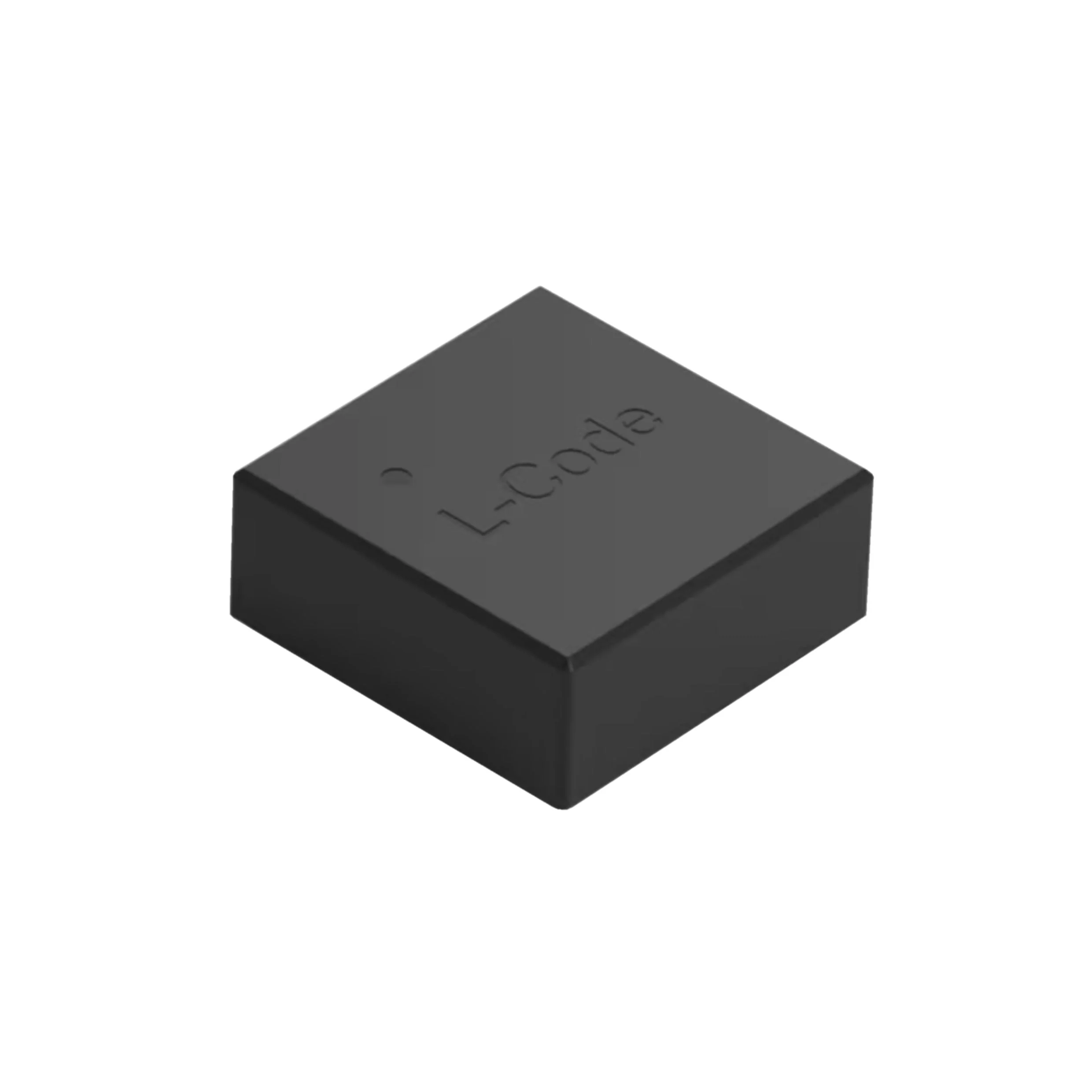

FIXED IND 560NH 12.7A 8 MOHM SMD
Specifications
Parameter Guide
Understand the key electrical and mechanical specifications for 744393230056.
744393230056 has an inductance value of 560 nH. This value indicates how much magnetic energy the component can store and is one of the first parameters to compare when selecting an inductor.
744393230056 is rated for 12.7 A. Current rating helps determine whether the part can carry the expected DC or RMS current without excessive heating or saturation risk.
744393230056 lists a DC resistance of 8mOhm Max. Lower DCR usually reduces conduction loss and improves efficiency in power circuits.
744393230056 uses a package or case of Nonstandard. Package size affects PCB footprint, height clearance, thermal behavior, and compatibility with automated assembly.
Explore Related Datasheet Paths
Continue from 744393230056 to manufacturer, series, and broader datasheet collections.
Product Attributes
| Inductance | 560 nH |
| Tolerance | ±20% |
| Current Rating | 12.7 A |
| DC Resistance (DCR) | 8mOhm Max |
| Saturation Current | 12A |
| Operating Temperature | -40°C ~ 125°C |
| Dimensions | 0.169" L x 0.169" W (4.30mm x 4.30mm) |
| Case / Size | Nonstandard |
| Package / Case | Nonstandard |
| Supplier | Würth Elektronik |
| Description | FIXED IND 560NH 12.7A 8 MOHM SMD |
| Series | WE-XHMI |
| Product Status | Active |
| Type / Construction | Molded |
| Core Material | Metal Composite |
| Shielding | Shielded |
| Self Resonant Frequency | 85MHz |
| Ratings | AEC-Q200 |
| Inductance Test Frequency | 100 kHz |
| Mounting Type | Surface Mount |
| Height - Seated (Max) | 0.087" (2.20mm) |
