Description

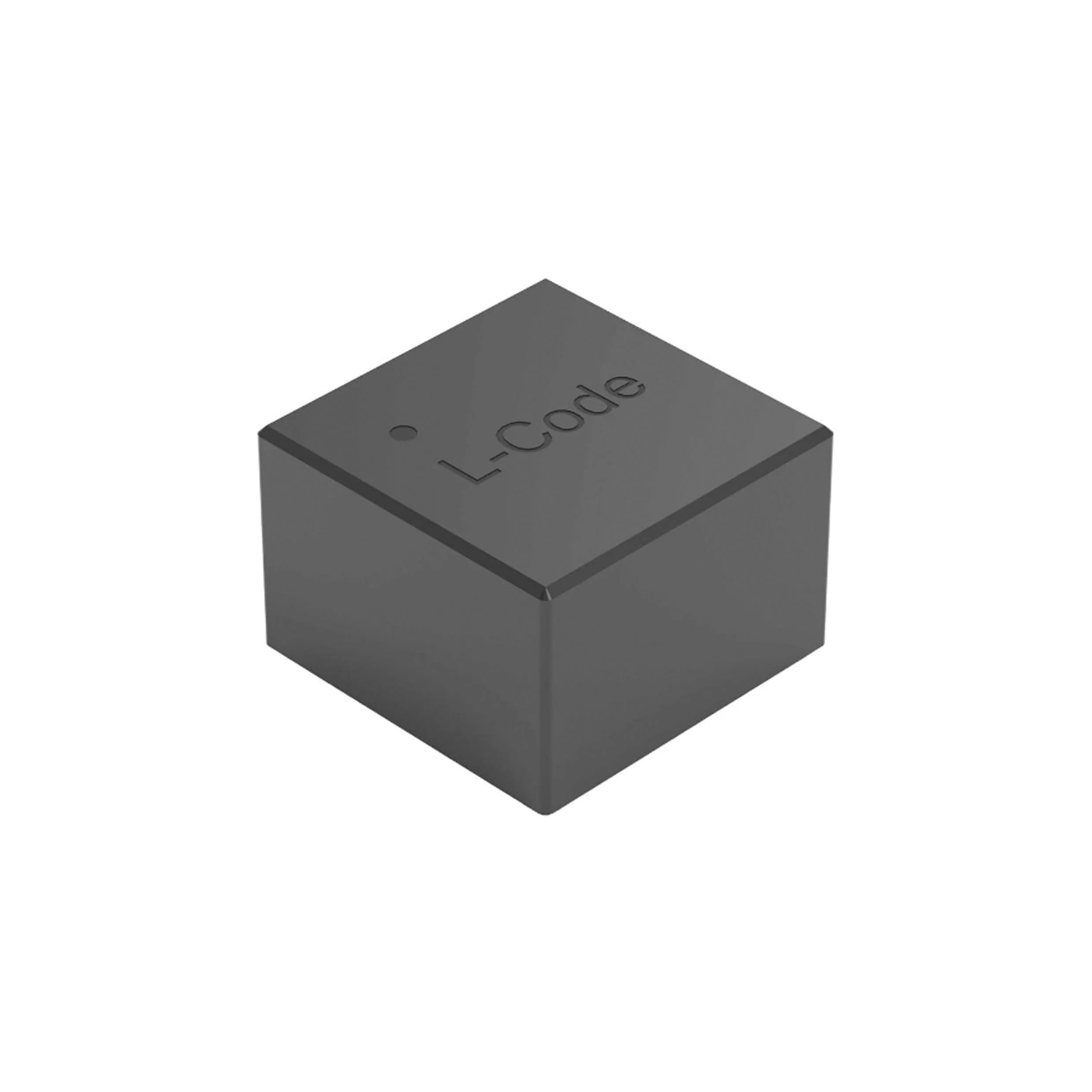

FIXED IND 6.8UH 4.1A 55 MOHM SMD
Specifications
Parameter Guide
Understand the key electrical and mechanical specifications for 74439325068.
74439325068 has an inductance value of 6.8 µH. This value indicates how much magnetic energy the component can store and is one of the first parameters to compare when selecting an inductor.
74439325068 is rated for 4.1 A. Current rating helps determine whether the part can carry the expected DC or RMS current without excessive heating or saturation risk.
74439325068 lists a DC resistance of 55mOhm Max. Lower DCR usually reduces conduction loss and improves efficiency in power circuits.
74439325068 uses a package or case of Nonstandard. Package size affects PCB footprint, height clearance, thermal behavior, and compatibility with automated assembly.
Explore Related Datasheet Paths
Continue from 74439325068 to manufacturer, series, and broader datasheet collections.
Product Attributes
| Inductance | 6.8 µH |
| Tolerance | ±20% |
| Current Rating | 4.1 A |
| DC Resistance (DCR) | 55mOhm Max |
| Saturation Current | 4.9A |
| Operating Temperature | -40°C ~ 125°C |
| Dimensions | 0.169" L x 0.169" W (4.30mm x 4.30mm) |
| Case / Size | Nonstandard |
| Package / Case | Nonstandard |
| Supplier | Würth Elektronik |
| Description | FIXED IND 6.8UH 4.1A 55 MOHM SMD |
| Series | WE-XHMI |
| Product Status | Active |
| Type / Construction | Molded |
| Core Material | Metal Composite |
| Shielding | Shielded |
| Self Resonant Frequency | 23MHz |
| Ratings | AEC-Q200 |
| Inductance Test Frequency | 100 kHz |
| Mounting Type | Surface Mount |
| Height - Seated (Max) | 0.161" (4.10mm) |
