Description

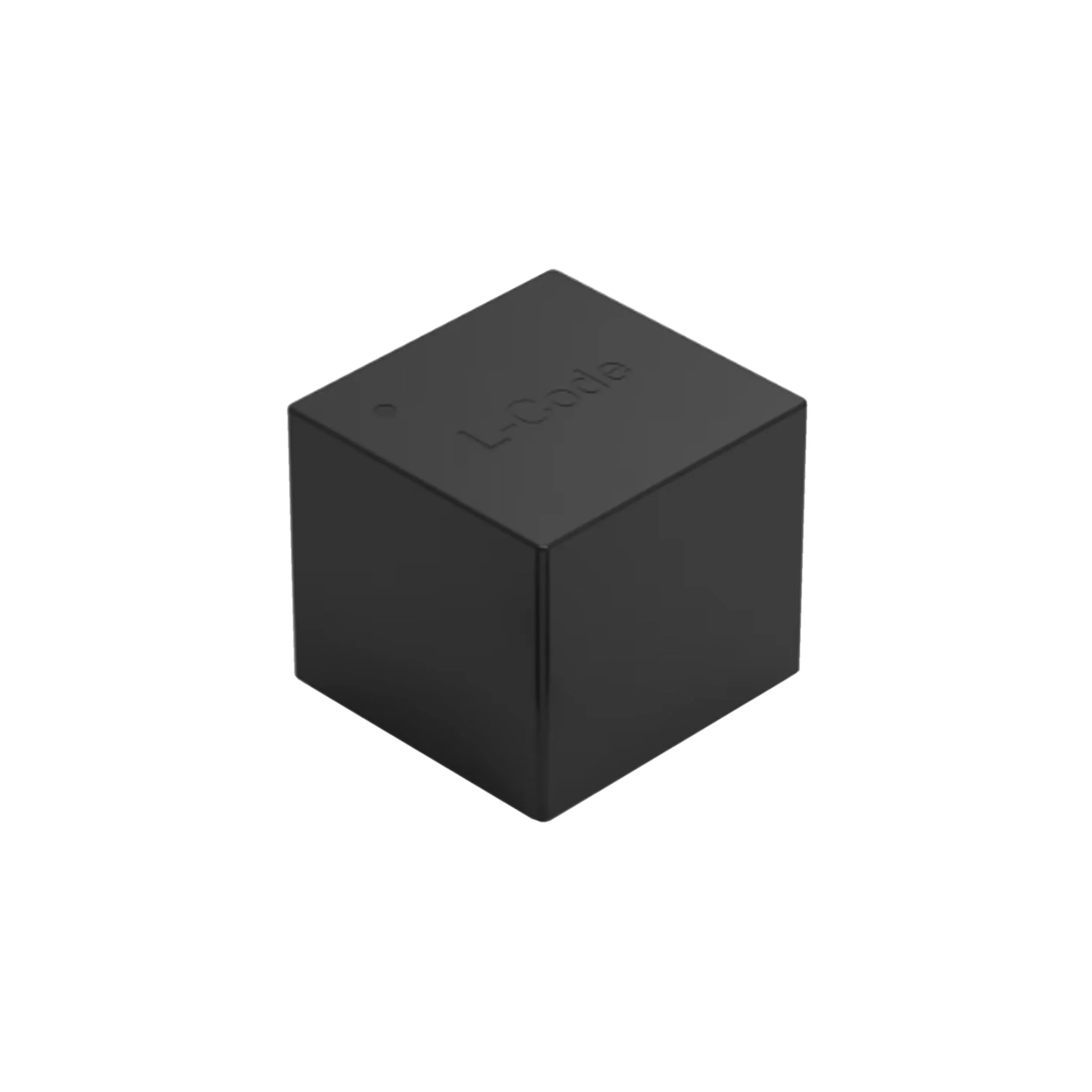

FIXED IND 5.6UH 6.7A 25.44 MOHM
Specifications
Parameter Guide
Understand the key electrical and mechanical specifications for 744393305056.
744393305056 has an inductance value of 5.6 µH. This value indicates how much magnetic energy the component can store and is one of the first parameters to compare when selecting an inductor.
744393305056 is rated for 6.7 A. Current rating helps determine whether the part can carry the expected DC or RMS current without excessive heating or saturation risk.
744393305056 lists a DC resistance of 25.44mOhm Max. Lower DCR usually reduces conduction loss and improves efficiency in power circuits.
744393305056 uses a package or case of Nonstandard. Package size affects PCB footprint, height clearance, thermal behavior, and compatibility with automated assembly.
Explore Related Datasheet Paths
Continue from 744393305056 to manufacturer, series, and broader datasheet collections.
Product Attributes
| Inductance | 5.6 µH |
| Tolerance | ±20% |
| Current Rating | 6.7 A |
| DC Resistance (DCR) | 25.44mOhm Max |
| Saturation Current | 9.7A |
| Operating Temperature | -40°C ~ 125°C |
| Dimensions | 0.219" L x 0.211" W (5.55mm x 5.35mm) |
| Case / Size | Nonstandard |
| Package / Case | Nonstandard |
| Supplier | Würth Elektronik |
| Description | FIXED IND 5.6UH 6.7A 25.44 MOHM |
| Series | WE-XHMI |
| Product Status | Active |
| Type / Construction | Molded |
| Core Material | Metal Composite |
| Shielding | Shielded |
| Self Resonant Frequency | 21MHz |
| Ratings | AEC-Q200 |
| Inductance Test Frequency | 100 kHz |
| Mounting Type | Surface Mount |
| Height - Seated (Max) | 0.201" (5.10mm) |
