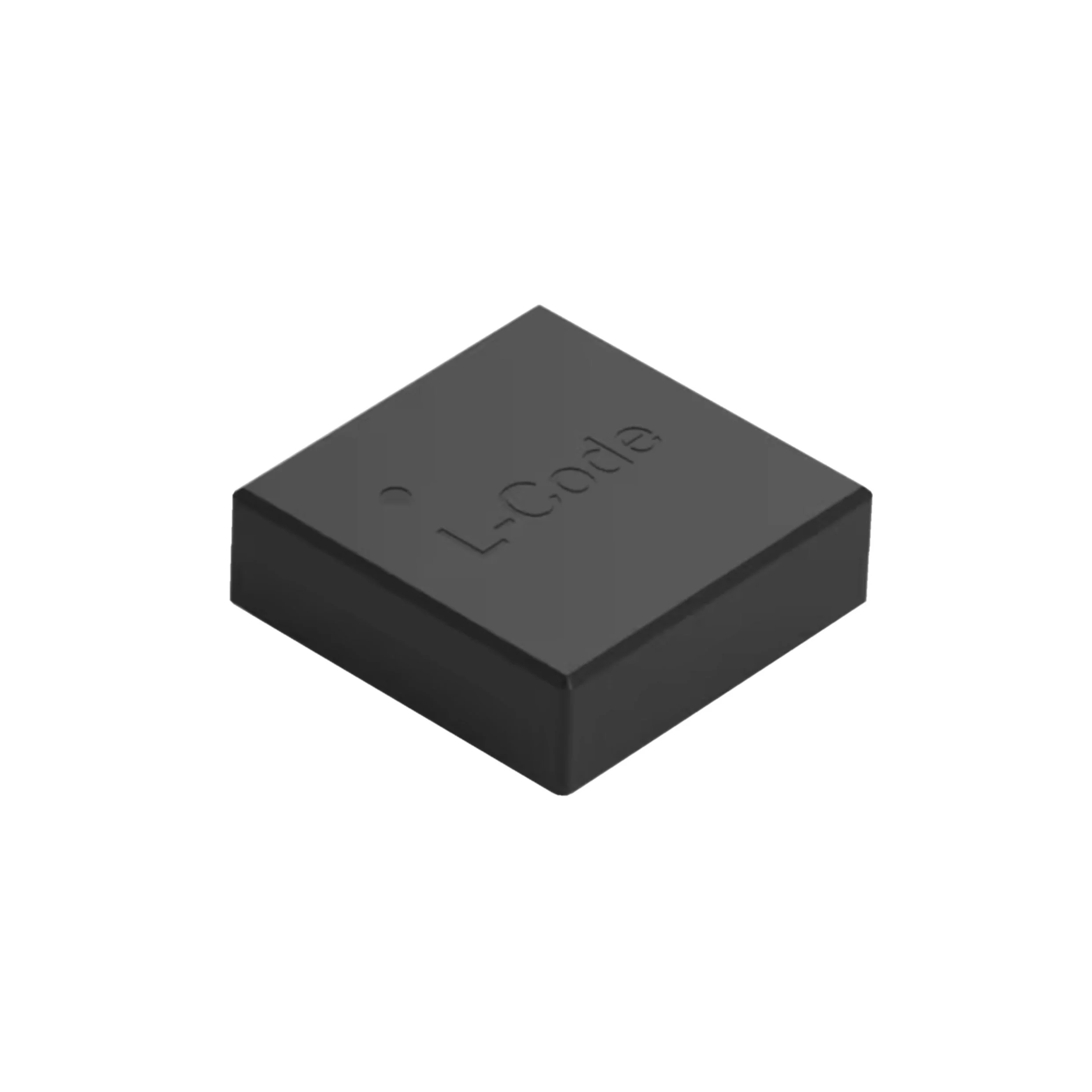

FIXED IND 1UH 11.4A 10.92 MOHM
| Inductance | 1 µH |
| Tolerance | ±20% |
| Current Rating | 11.4 A |
| DC Resistance (DCR) | 10.92mOhm Max |
| saturationCurrent | 14.4A |
| Operating Temperature | -40°C ~ 125°C |
| Dimensions | 0.219" L x 0.211" W (5.55mm x 5.35mm) |
| Case / Size | Nonstandard |
| Supplier | Würth Elektronik |
| Description | FIXED IND 1UH 11.4A 10.92 MOHM |
| Series | WE-XHMI |
| productStatus | Active |
| typeConstruction | Molded |
| coreMaterial | Metal Composite |
| shielding | Shielded |
| qFactor | - |
| selfResonantFreq | 55MHz |
| ratings | - |
| testFrequency | 100 kHz |
| mountingType | Surface Mount |
| supplierDevicePackage | - |
| heightMax | 0.087" (2.20mm) |
| features | - |
