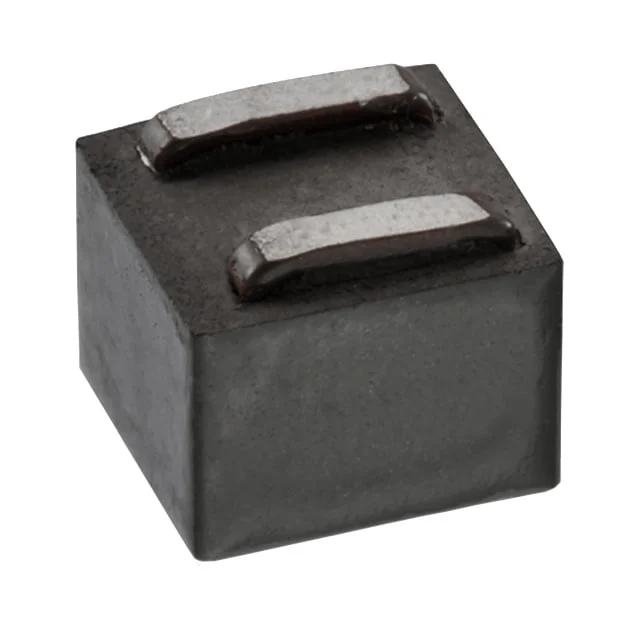

FIXED IND 1.5UH 23.2A 1.46 MOHM
| Inductance | 1.5 µH |
| Tolerance | ±20% |
| Current Rating | 23.2 A |
| DC Resistance (DCR) | 1.46mOhm |
| saturationCurrent | 38.55A |
| Operating Temperature | -40°C ~ 125°C |
| Dimensions | 0.457" L x 0.413" W (11.60mm x 10.50mm) |
| Case / Size | Nonstandard |
| Supplier | Würth Elektronik |
| Description | FIXED IND 1.5UH 23.2A 1.46 MOHM |
| Series | WE-XHMI |
| productStatus | Active |
| typeConstruction | Molded |
| coreMaterial | Metal Composite |
| shielding | Shielded |
| qFactor | - |
| selfResonantFreq | 31MHz |
| ratings | - |
| testFrequency | 100 kHz |
| mountingType | Surface Mount |
| supplierDevicePackage | - |
| heightMax | 0.358" (9.10mm) |
| features | - |
