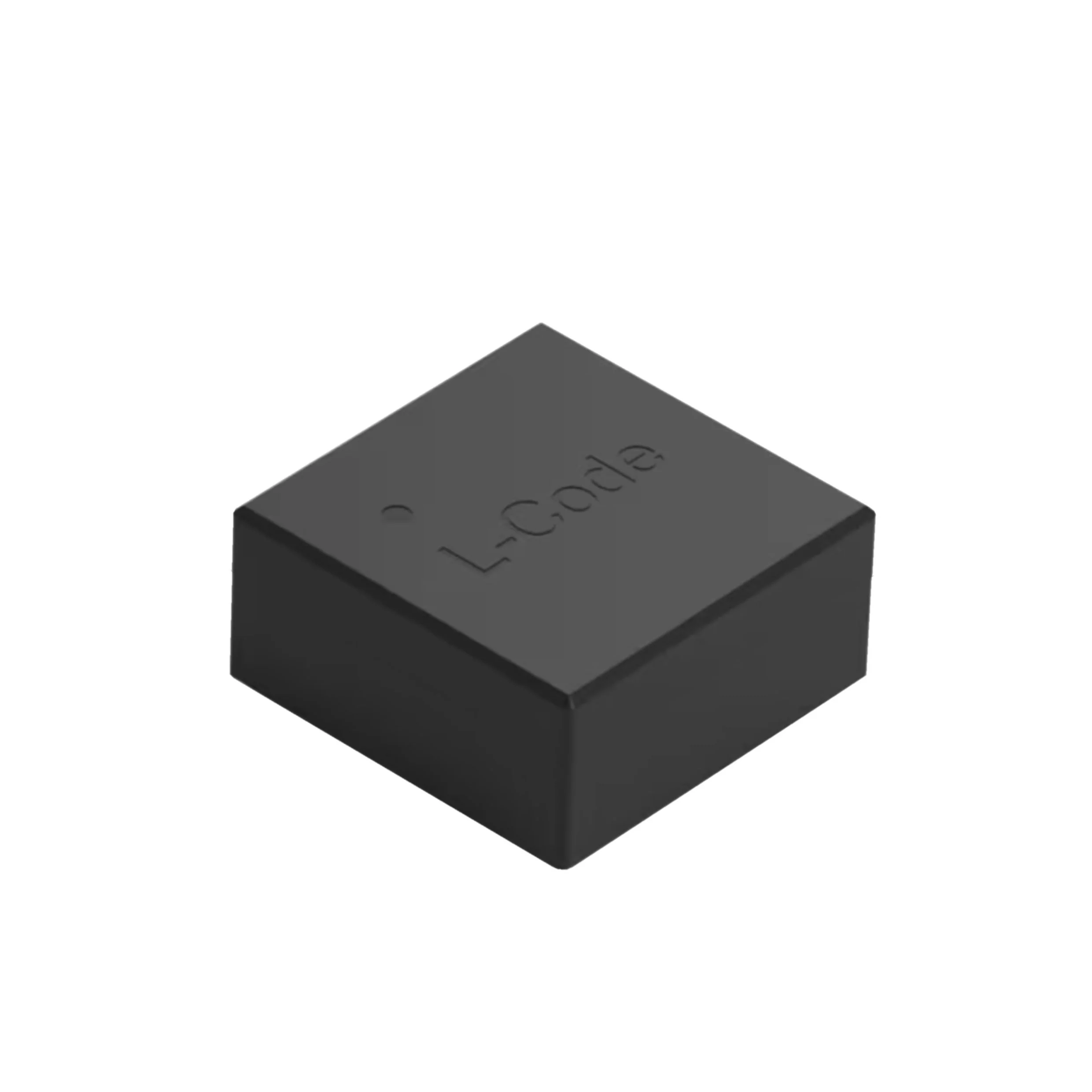

FIXED IND 2.2UH 16.7A 10.56 MOHM
| Inductance | 2.2 µH |
| Tolerance | ±20% |
| Current Rating | 16.7 A |
| DC Resistance (DCR) | 10.56mOhm Max |
| saturationCurrent | 13.8A |
| Operating Temperature | -40°C ~ 125°C |
| Dimensions | 0.311" L x 0.299" W (7.90mm x 7.60mm) |
| Case / Size | Nonstandard |
| Supplier | Würth Elektronik |
| Description | FIXED IND 2.2UH 16.7A 10.56 MOHM |
| Series | WE-XHMI |
| productStatus | Active |
| typeConstruction | Molded |
| coreMaterial | Metal Composite |
| shielding | Shielded |
| qFactor | - |
| selfResonantFreq | 27MHz |
| ratings | AEC-Q200 |
| testFrequency | 27 MHz |
| mountingType | Surface Mount |
| supplierDevicePackage | - |
| heightMax | 0.126" (3.20mm) |
| features | - |
