Description

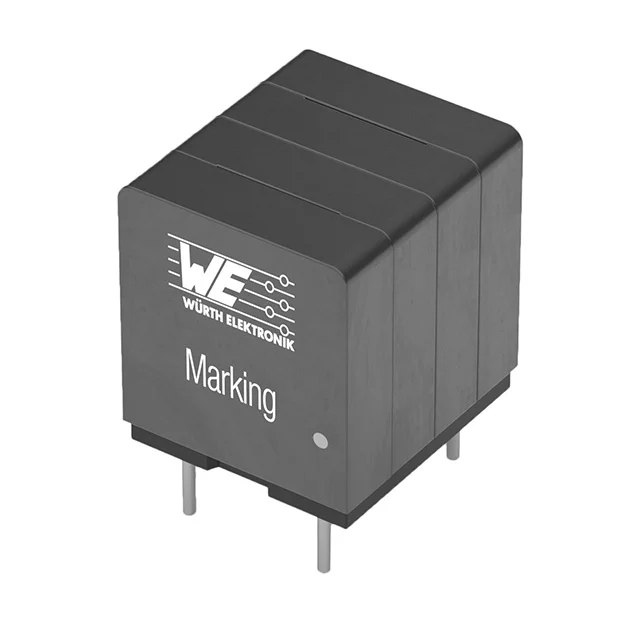

FIXED IND 15UH 8A 10 MOHM TH
Specifications
Parameter Guide
Understand the key electrical and mechanical specifications for 7444011480150.
7444011480150 has an inductance value of 15 µH. This value indicates how much magnetic energy the component can store and is one of the first parameters to compare when selecting an inductor.
7444011480150 is rated for 8 A. Current rating helps determine whether the part can carry the expected DC or RMS current without excessive heating or saturation risk.
7444011480150 lists a DC resistance of 10mOhm. Lower DCR usually reduces conduction loss and improves efficiency in power circuits.
7444011480150 uses a package or case of Nonstandard. Package size affects PCB footprint, height clearance, thermal behavior, and compatibility with automated assembly.
Explore Related Datasheet Paths
Continue from 7444011480150 to manufacturer, series, and broader datasheet collections.
Product Attributes
| Inductance | 15 µH |
| Tolerance | ±20% |
| Current Rating | 8 A |
| DC Resistance (DCR) | 10mOhm |
| Saturation Current | 9.5A |
| Operating Temperature | -40°C ~ 125°C |
| Dimensions | 0.551" L x 0.315" W (14.00mm x 8.00mm) |
| Case / Size | Nonstandard |
| Package / Case | Nonstandard |
| Supplier | Würth Elektronik |
| Description | FIXED IND 15UH 8A 10 MOHM TH |
| Series | WE-HIDA |
| Product Status | Active |
| Shielding | Unshielded |
| Self Resonant Frequency | 13MHz |
| Inductance Test Frequency | 100 kHz |
| Mounting Type | Through Hole |
| Height - Seated (Max) | 0.630" (16.00mm) |
