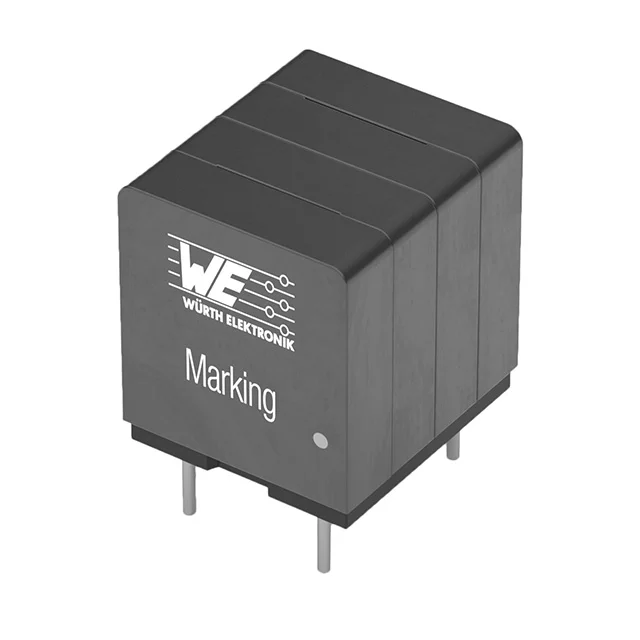

FIXED IND 22UH 8A 10 MOHM TH
| Inductance | 22 µH |
| Tolerance | ±20% |
| Current Rating | 8 A |
| DC Resistance (DCR) | 10mOhm |
| saturationCurrent | 6.5A |
| Operating Temperature | -40°C ~ 125°C |
| Dimensions | 0.551" L x 0.315" W (14.00mm x 8.00mm) |
| Case / Size | Nonstandard |
| Supplier | Würth Elektronik |
| Description | FIXED IND 22UH 8A 10 MOHM TH |
| Series | WE-HIDA |
| productStatus | Active |
| typeConstruction | - |
| coreMaterial | - |
| shielding | Unshielded |
| qFactor | - |
| selfResonantFreq | 9MHz |
| ratings | - |
| testFrequency | 100 kHz |
| mountingType | Through Hole |
| supplierDevicePackage | - |
| heightMax | 0.630" (16.00mm) |
| features | - |
