Description

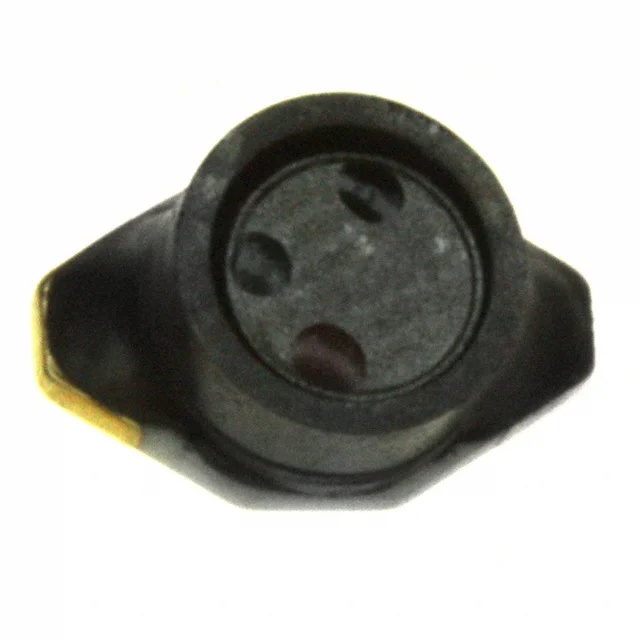

FIXED IND 15UH 800MA 90 MOHM SMD
Specifications
Parameter Guide
Understand the key electrical and mechanical specifications for 74451115.
74451115 has an inductance value of 15 µH. This value indicates how much magnetic energy the component can store and is one of the first parameters to compare when selecting an inductor.
74451115 is rated for 800 mA. Current rating helps determine whether the part can carry the expected DC or RMS current without excessive heating or saturation risk.
74451115 lists a DC resistance of 90mOhm Max. Lower DCR usually reduces conduction loss and improves efficiency in power circuits.
74451115 uses a package or case of Nonstandard. Package size affects PCB footprint, height clearance, thermal behavior, and compatibility with automated assembly.
Explore Related Datasheet Paths
Continue from 74451115 to manufacturer, series, and broader datasheet collections.
Product Attributes
| Inductance | 15 µH |
| Tolerance | ±20% |
| Current Rating | 800 mA |
| DC Resistance (DCR) | 90mOhm Max |
| Saturation Current | 270mA |
| Operating Temperature | -40°C ~ 125°C |
| Dimensions | 0.260" L x 0.175" W (6.60mm x 4.45mm) |
| Case / Size | Nonstandard |
| Package / Case | Nonstandard |
| Supplier | Würth Elektronik |
| Description | FIXED IND 15UH 800MA 90 MOHM SMD |
| Series | WE-PD3 |
| Product Status | Active |
| Type / Construction | Drum Core, Wirewound |
| Shielding | Shielded |
| Self Resonant Frequency | 25.5MHz |
| Inductance Test Frequency | 100 kHz |
| Mounting Type | Surface Mount |
| Height - Seated (Max) | 0.115" (2.92mm) |
