Description

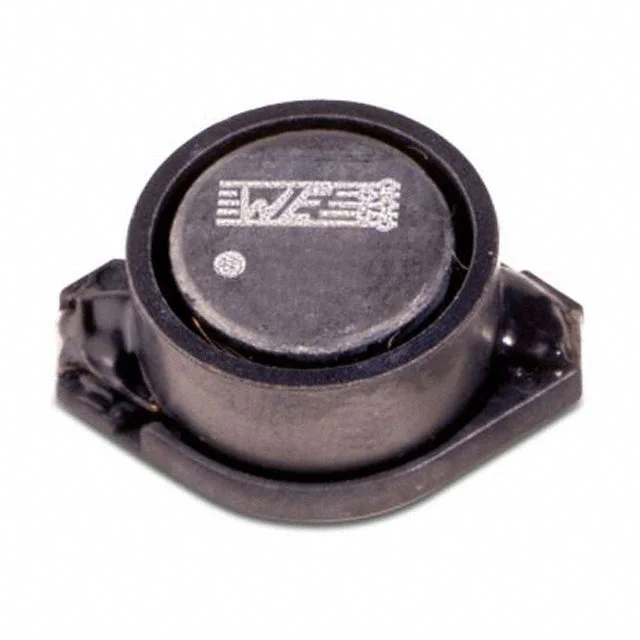

FIXED IND 150UH 550MA 520 MOHM
Specifications
Parameter Guide
Understand the key electrical and mechanical specifications for 74454215.
74454215 has an inductance value of 150 µH. This value indicates how much magnetic energy the component can store and is one of the first parameters to compare when selecting an inductor.
74454215 is rated for 550 mA. Current rating helps determine whether the part can carry the expected DC or RMS current without excessive heating or saturation risk.
74454215 lists a DC resistance of 520mOhm Max. Lower DCR usually reduces conduction loss and improves efficiency in power circuits.
74454215 uses a package or case of Nonstandard. Package size affects PCB footprint, height clearance, thermal behavior, and compatibility with automated assembly.
Explore Related Datasheet Paths
Continue from 74454215 to manufacturer, series, and broader datasheet collections.
Product Attributes
| Inductance | 150 µH |
| Tolerance | ±10% |
| Current Rating | 550 mA |
| DC Resistance (DCR) | 520mOhm Max |
| Saturation Current | 800mA |
| Operating Temperature | -40°C ~ 125°C |
| Dimensions | 0.500" L x 0.394" W (12.70mm x 10.00mm) |
| Case / Size | Nonstandard |
| Package / Case | Nonstandard |
| Supplier | Würth Elektronik |
| Description | FIXED IND 150UH 550MA 520 MOHM |
| Series | WE-PD3 |
| Product Status | Active |
| Type / Construction | Drum Core, Wirewound |
| Shielding | Shielded |
| Self Resonant Frequency | 6MHz |
| Inductance Test Frequency | 100 kHz |
| Mounting Type | Surface Mount |
| Height - Seated (Max) | 0.205" (5.20mm) |
