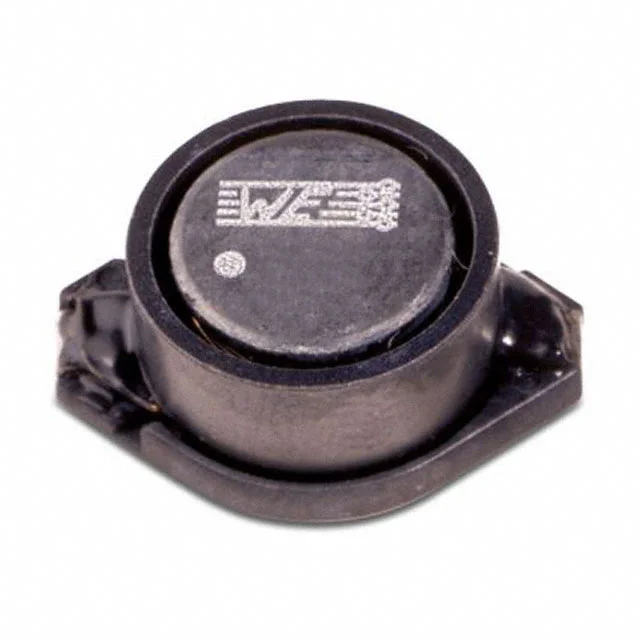

FIXED IND 680UH 260MA 2.3 OHM
| Inductance | 680 µH |
| Tolerance | ±10% |
| Current Rating | 260 mA |
| DC Resistance (DCR) | 2.3Ohm Max |
| saturationCurrent | 400mA |
| Operating Temperature | -40°C ~ 125°C |
| Dimensions | 0.500" L x 0.394" W (12.70mm x 10.00mm) |
| Case / Size | Nonstandard |
| Supplier | Würth Elektronik |
| Description | FIXED IND 680UH 260MA 2.3 OHM |
| Series | WE-PD3 |
| productStatus | Active |
| typeConstruction | Drum Core, Wirewound |
| coreMaterial | - |
| shielding | Shielded |
| qFactor | - |
| selfResonantFreq | 2.5MHz |
| ratings | - |
| testFrequency | 100 kHz |
| mountingType | Surface Mount |
| supplierDevicePackage | - |
| heightMax | 0.205" (5.20mm) |
| features | - |
