Description

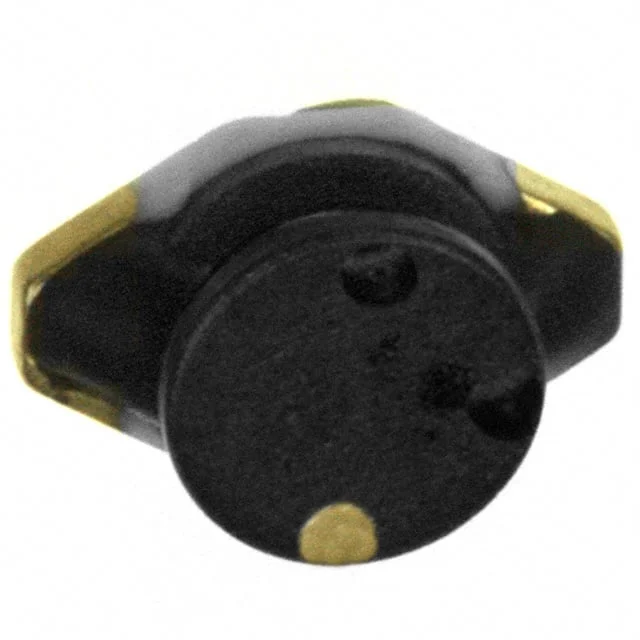

FIXED IND 1.5UH 2.8A 50 MOHM SMD
Specifications
Inductance
1.5 µH
Current Rating
2.8 A
DC Resistance (DCR)
50mOhm Max
Dimensions
0.260" L x 0.175" W (6.60mm x 4.45mm)
Product Attributes
Manufacturer Verified
Last verified: 6/13/2026| Inductance | 1.5 µH |
| Tolerance | ±20% |
| Current Rating | 2.8 A |
| DC Resistance (DCR) | 50mOhm Max |
| saturationCurrent | 2.6A |
| Operating Temperature | -40°C ~ 100°C |
| Dimensions | 0.260" L x 0.175" W (6.60mm x 4.45mm) |
| Case / Size | Nonstandard |
| Supplier | Würth Elektronik |
| Description | FIXED IND 1.5UH 2.8A 50 MOHM SMD |
| Series | WE-PD4 |
| productStatus | Active |
| typeConstruction | Drum Core, Wirewound |
| coreMaterial | Ferrite |
| shielding | Unshielded |
| qFactor | - |
| selfResonantFreq | 62MHz |
| ratings | - |
| testFrequency | 100 kHz |
| mountingType | Surface Mount |
| supplierDevicePackage | - |
| heightMax | 0.115" (2.92mm) |
| features | - |
