Description

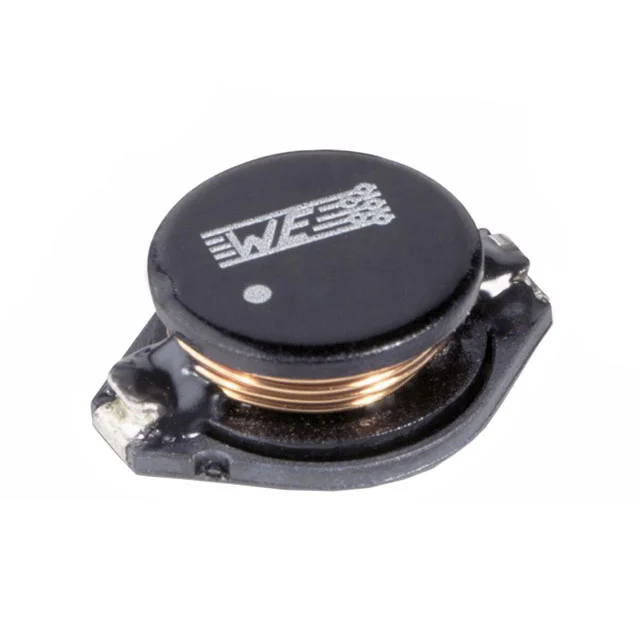

FIXED IND 220UH 200MA 3.11 OHM
Specifications
Parameter Guide
Understand the key electrical and mechanical specifications for 74455222.
74455222 has an inductance value of 220 µH. This value indicates how much magnetic energy the component can store and is one of the first parameters to compare when selecting an inductor.
74455222 is rated for 200 mA. Current rating helps determine whether the part can carry the expected DC or RMS current without excessive heating or saturation risk.
74455222 lists a DC resistance of 3.11Ohm Max. Lower DCR usually reduces conduction loss and improves efficiency in power circuits.
74455222 uses a package or case of Nonstandard. Package size affects PCB footprint, height clearance, thermal behavior, and compatibility with automated assembly.
Explore Related Datasheet Paths
Continue from 74455222 to manufacturer, series, and broader datasheet collections.
Product Attributes
| Inductance | 220 µH |
| Tolerance | ±20% |
| Current Rating | 200 mA |
| DC Resistance (DCR) | 3.11Ohm Max |
| Saturation Current | 220mA |
| Operating Temperature | -40°C ~ 100°C |
| Dimensions | 0.260" L x 0.173" W (6.60mm x 4.40mm) |
| Case / Size | Nonstandard |
| Package / Case | Nonstandard |
| Supplier | Würth Elektronik |
| Description | FIXED IND 220UH 200MA 3.11 OHM |
| Series | WE-PD4 |
| Product Status | Active |
| Type / Construction | Drum Core, Wirewound |
| Core Material | Ferrite |
| Shielding | Unshielded |
| Self Resonant Frequency | 4.8MHz |
| Inductance Test Frequency | 100 kHz |
| Mounting Type | Surface Mount |
| Height - Seated (Max) | 0.114" (2.90mm) |
