Description

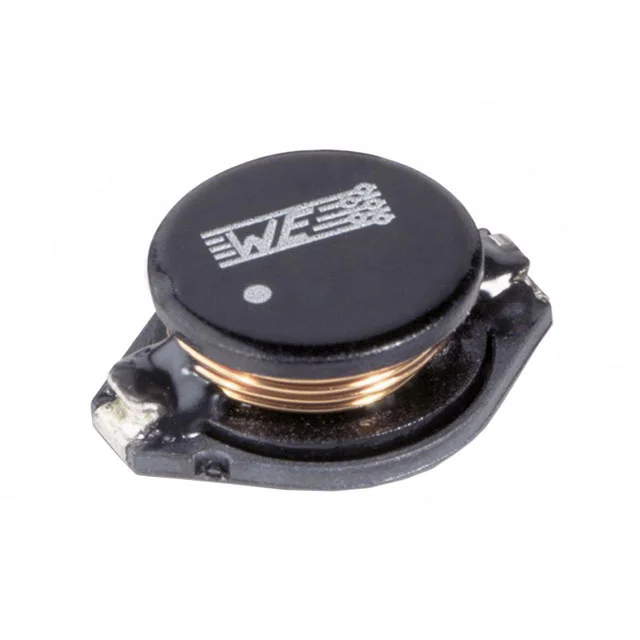

FIXED IND 330UH 160MA 5 OHM SMD
Specifications
Parameter Guide
Understand the key electrical and mechanical specifications for 74455233.
74455233 has an inductance value of 330 µH. This value indicates how much magnetic energy the component can store and is one of the first parameters to compare when selecting an inductor.
74455233 is rated for 160 mA. Current rating helps determine whether the part can carry the expected DC or RMS current without excessive heating or saturation risk.
74455233 lists a DC resistance of 5Ohm Max. Lower DCR usually reduces conduction loss and improves efficiency in power circuits.
74455233 uses a package or case of Nonstandard. Package size affects PCB footprint, height clearance, thermal behavior, and compatibility with automated assembly.
Explore Related Datasheet Paths
Continue from 74455233 to manufacturer, series, and broader datasheet collections.
Product Attributes
| Inductance | 330 µH |
| Tolerance | ±20% |
| Current Rating | 160 mA |
| DC Resistance (DCR) | 5Ohm Max |
| Saturation Current | 180mA |
| Operating Temperature | -40°C ~ 125°C |
| Dimensions | 0.260" L x 0.175" W (6.60mm x 4.45mm) |
| Case / Size | Nonstandard |
| Package / Case | Nonstandard |
| Supplier | Würth Elektronik |
| Description | FIXED IND 330UH 160MA 5 OHM SMD |
| Series | WE-PD4 |
| Product Status | Active |
| Type / Construction | Wirewound |
| Shielding | Unshielded |
| Self Resonant Frequency | 4MHz |
| Inductance Test Frequency | 100 kHz |
| Mounting Type | Surface Mount |
| Height - Seated (Max) | 0.115" (2.92mm) |
