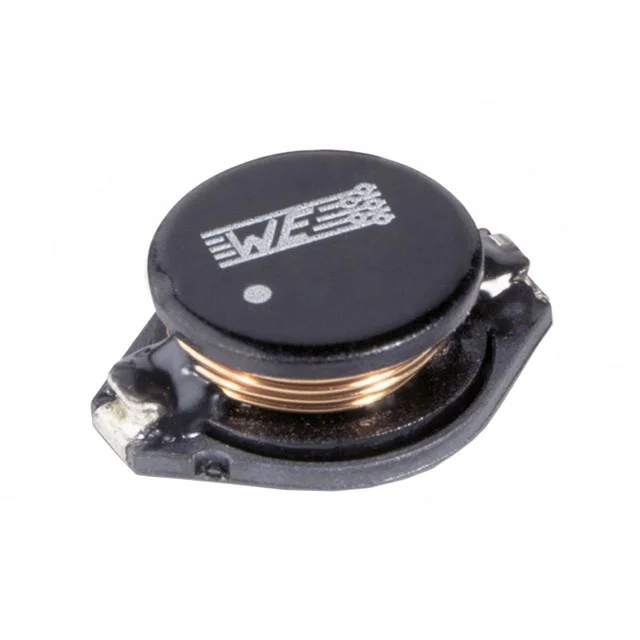

FIXED IND 27UH 3.8A 52 MOHM SMD
| Inductance | 27 µH |
| Tolerance | ±15% |
| Current Rating | 3.8 A |
| DC Resistance (DCR) | 52mOhm Max |
| saturationCurrent | 6A |
| Operating Temperature | -40°C ~ 125°C |
| Dimensions | 0.866" L x 0.591" W (22.00mm x 15.00mm) |
| Case / Size | Nonstandard |
| Supplier | Würth Elektronik |
| Description | FIXED IND 27UH 3.8A 52 MOHM SMD |
| Series | WE-PD4 |
| productStatus | Active |
| typeConstruction | Wirewound |
| coreMaterial | Metal Composite |
| shielding | Shielded |
| qFactor | - |
| selfResonantFreq | 12.5MHz |
| ratings | - |
| testFrequency | 100 kHz |
| mountingType | Surface Mount |
| supplierDevicePackage | - |
| heightMax | 0.307" (7.80mm) |
| features | - |
