Description

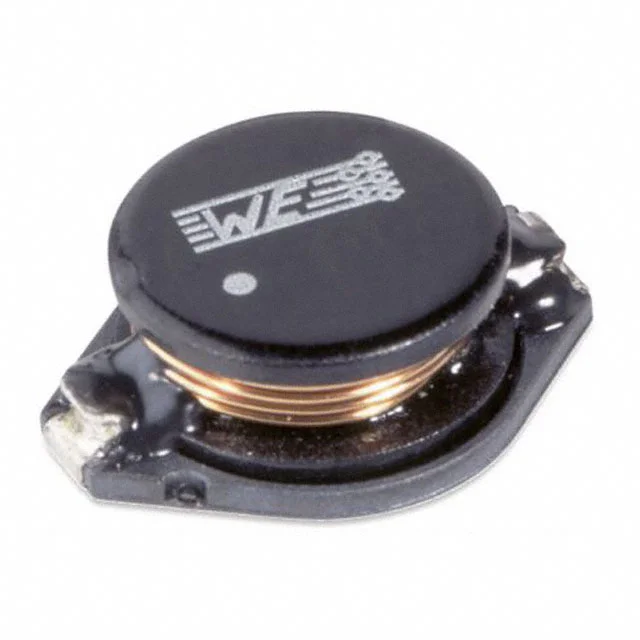

FIXED IND 470UH 820MA 809 MOHM
Specifications
Parameter Guide
Understand the key electrical and mechanical specifications for 74457247.
74457247 has an inductance value of 470 µH. This value indicates how much magnetic energy the component can store and is one of the first parameters to compare when selecting an inductor.
74457247 is rated for 820 mA. Current rating helps determine whether the part can carry the expected DC or RMS current without excessive heating or saturation risk.
74457247 lists a DC resistance of 809mOhm Max. Lower DCR usually reduces conduction loss and improves efficiency in power circuits.
74457247 uses a package or case of Nonstandard. Package size affects PCB footprint, height clearance, thermal behavior, and compatibility with automated assembly.
Explore Related Datasheet Paths
Continue from 74457247 to manufacturer, series, and broader datasheet collections.
Product Attributes
| Inductance | 470 µH |
| Tolerance | ±10% |
| Current Rating | 820 mA |
| DC Resistance (DCR) | 809mOhm Max |
| Saturation Current | 1.4A |
| Operating Temperature | -40°C ~ 125°C |
| Dimensions | 0.866" L x 0.591" W (22.00mm x 15.00mm) |
| Case / Size | Nonstandard |
| Package / Case | Nonstandard |
| Supplier | Würth Elektronik |
| Description | FIXED IND 470UH 820MA 809 MOHM |
| Series | WE-PD4 |
| Product Status | Active |
| Type / Construction | Drum Core, Wirewound |
| Core Material | Ferrite |
| Shielding | Unshielded |
| Self Resonant Frequency | 2.1MHz |
| Inductance Test Frequency | 100 kHz |
| Mounting Type | Surface Mount |
| Height - Seated (Max) | 0.307" (7.80mm) |
