Description

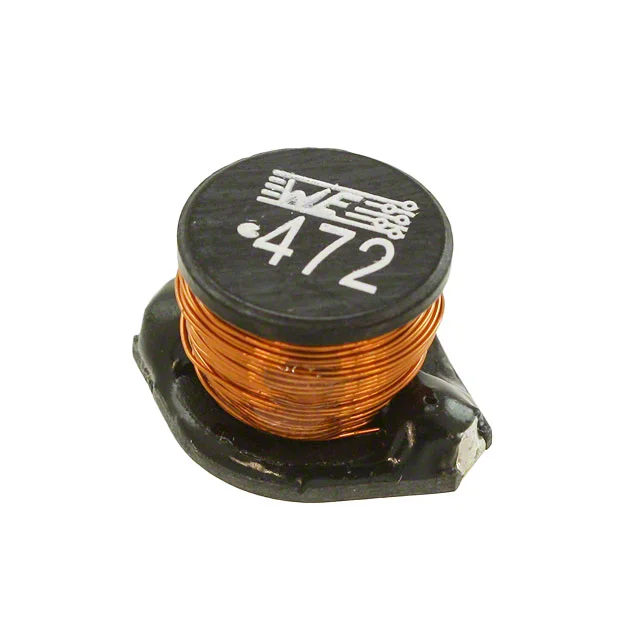

FIXED IND 4.7MH 400MA 4.8 OHM
Specifications
Parameter Guide
Understand the key electrical and mechanical specifications for 74458304.
74458304 has an inductance value of 4.7 mH. This value indicates how much magnetic energy the component can store and is one of the first parameters to compare when selecting an inductor.
74458304 is rated for 400 mA. Current rating helps determine whether the part can carry the expected DC or RMS current without excessive heating or saturation risk.
74458304 lists a DC resistance of 4.8Ohm Max. Lower DCR usually reduces conduction loss and improves efficiency in power circuits.
74458304 uses a package or case of Nonstandard. Package size affects PCB footprint, height clearance, thermal behavior, and compatibility with automated assembly.
Explore Related Datasheet Paths
Continue from 74458304 to manufacturer, series, and broader datasheet collections.
Product Attributes
| Inductance | 4.7 mH |
| Tolerance | ±10% |
| Current Rating | 400 mA |
| DC Resistance (DCR) | 4.8Ohm Max |
| Saturation Current | 900mA |
| Operating Temperature | -40°C ~ 125°C |
| Dimensions | 0.730" L x 0.600" W (18.54mm x 15.24mm) |
| Case / Size | Nonstandard |
| Package / Case | Nonstandard |
| Supplier | Würth Elektronik |
| Description | FIXED IND 4.7MH 400MA 4.8 OHM |
| Series | WE-ASI |
| Product Status | Active |
| Type / Construction | Drum Core, Wirewound |
| Core Material | Ferrite |
| Shielding | Unshielded |
| Self Resonant Frequency | 500kHz |
| Inductance Test Frequency | 100 kHz |
| Mounting Type | Surface Mount |
| Height - Seated (Max) | 0.472" (12.00mm) |
