Description

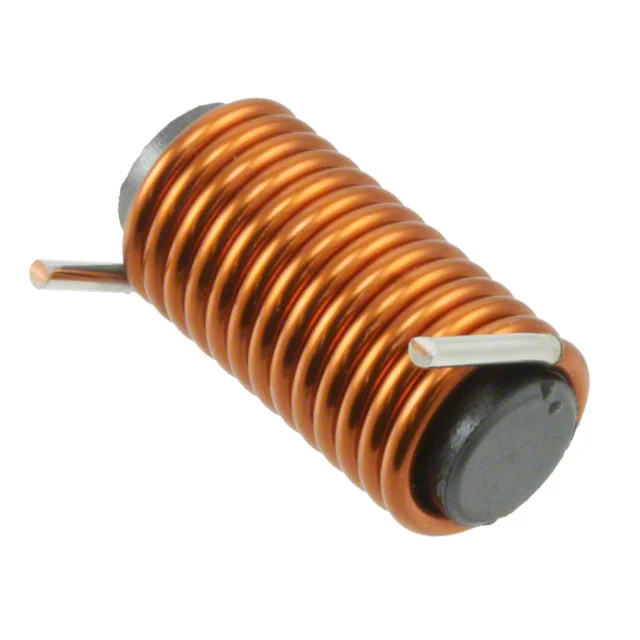

FIXED IND 6UH 15A 3.5 MOHM TH
Specifications
Parameter Guide
Understand the key electrical and mechanical specifications for 744710615.
744710615 has an inductance value of 6 µH. This value indicates how much magnetic energy the component can store and is one of the first parameters to compare when selecting an inductor.
744710615 is rated for 15 A. Current rating helps determine whether the part can carry the expected DC or RMS current without excessive heating or saturation risk.
744710615 lists a DC resistance of 3.5mOhm. Lower DCR usually reduces conduction loss and improves efficiency in power circuits.
744710615 uses a package or case of Radial, Horizontal Cylinder (Open). Package size affects PCB footprint, height clearance, thermal behavior, and compatibility with automated assembly.
Explore Related Datasheet Paths
Continue from 744710615 to manufacturer, series, and broader datasheet collections.
Product Attributes
| Inductance | 6 µH |
| Tolerance | ±25% |
| Current Rating | 15 A |
| DC Resistance (DCR) | 3.5mOhm |
| Operating Temperature | -40°C ~ 150°C |
| Dimensions | 0.551" Dia x 1.181" L (14.00mm x 30.00mm) |
| Case / Size | Radial, Horizontal Cylinder (Open) |
| Package / Case | Radial, Horizontal Cylinder (Open) |
| Supplier | Würth Elektronik |
| Description | FIXED IND 6UH 15A 3.5 MOHM TH |
| Series | WE-SD |
| Product Status | Active |
| Type / Construction | Drum Core, Wirewound |
| Core Material | Ferrite |
| Shielding | Unshielded |
| Self Resonant Frequency | 45MHz |
| Inductance Test Frequency | 10 kHz |
| Mounting Type | Through Hole |
