Description

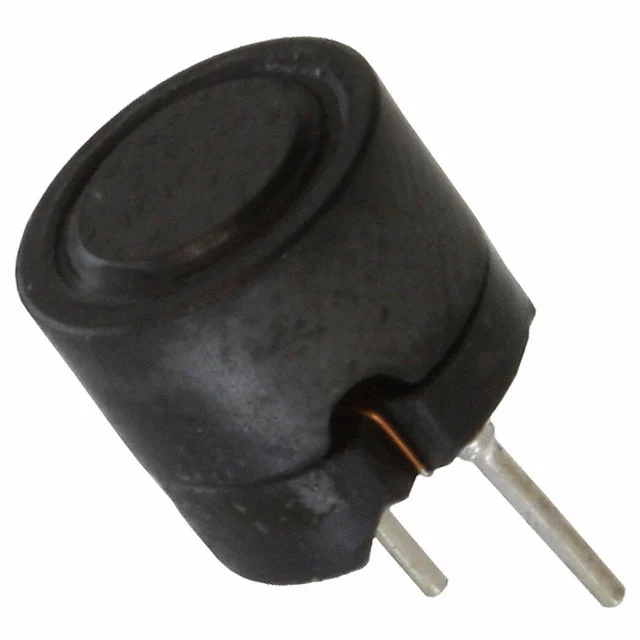

FIXED IND 2.2MH 200MA 4.6 OHM TH
Specifications
Parameter Guide
Understand the key electrical and mechanical specifications for 744731222.
744731222 has an inductance value of 2.2 mH. This value indicates how much magnetic energy the component can store and is one of the first parameters to compare when selecting an inductor.
744731222 is rated for 200 mA. Current rating helps determine whether the part can carry the expected DC or RMS current without excessive heating or saturation risk.
744731222 lists a DC resistance of 4.6Ohm Max. Lower DCR usually reduces conduction loss and improves efficiency in power circuits.
744731222 uses a package or case of Radial, Vertical Cylinder. Package size affects PCB footprint, height clearance, thermal behavior, and compatibility with automated assembly.
Explore Related Datasheet Paths
Continue from 744731222 to manufacturer, series, and broader datasheet collections.
Product Attributes
| Inductance | 2.2 mH |
| Tolerance | ±10% |
| Current Rating | 200 mA |
| DC Resistance (DCR) | 4.6Ohm Max |
| Saturation Current | 180mA |
| Operating Temperature | -40°C ~ 125°C |
| Dimensions | 0.307" Dia (7.80mm) |
| Case / Size | Radial, Vertical Cylinder |
| Package / Case | Radial, Vertical Cylinder |
| Supplier | Würth Elektronik |
| Description | FIXED IND 2.2MH 200MA 4.6 OHM TH |
| Series | WE-TIS |
| Product Status | Active |
| Type / Construction | Drum Core, Wirewound |
| Core Material | Ferrite |
| Shielding | Shielded |
| Self Resonant Frequency | 1.1MHz |
| Inductance Test Frequency | 1 kHz |
| Mounting Type | Through Hole |
| Height - Seated (Max) | 0.295" (7.50mm) |
