Description

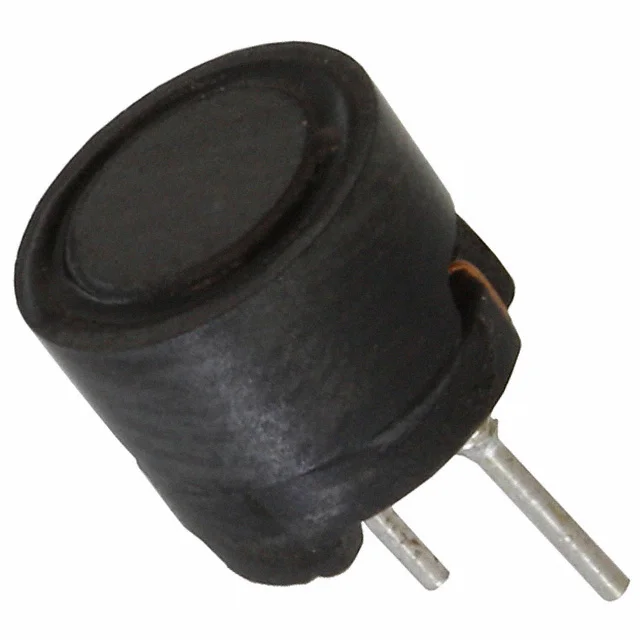

FIXED IND 68UH 1.5A 200 MOHM TH
Specifications
Parameter Guide
Understand the key electrical and mechanical specifications for 744731680.
744731680 has an inductance value of 68 µH. This value indicates how much magnetic energy the component can store and is one of the first parameters to compare when selecting an inductor.
744731680 is rated for 1.5 A. Current rating helps determine whether the part can carry the expected DC or RMS current without excessive heating or saturation risk.
744731680 lists a DC resistance of 200mOhm Max. Lower DCR usually reduces conduction loss and improves efficiency in power circuits.
744731680 uses a package or case of Radial, Vertical Cylinder. Package size affects PCB footprint, height clearance, thermal behavior, and compatibility with automated assembly.
Explore Related Datasheet Paths
Continue from 744731680 to manufacturer, series, and broader datasheet collections.
Product Attributes
| Inductance | 68 µH |
| Tolerance | ±10% |
| Current Rating | 1.5 A |
| DC Resistance (DCR) | 200mOhm Max |
| Saturation Current | 1A |
| Operating Temperature | -40°C ~ 125°C |
| Dimensions | 0.307" Dia (7.80mm) |
| Case / Size | Radial, Vertical Cylinder |
| Package / Case | Radial, Vertical Cylinder |
| Supplier | Würth Elektronik |
| Description | FIXED IND 68UH 1.5A 200 MOHM TH |
| Series | WE-TIS |
| Product Status | Active |
| Type / Construction | Drum Core, Wirewound |
| Core Material | Ferrite |
| Shielding | Shielded |
| Self Resonant Frequency | 6.3MHz |
| Inductance Test Frequency | 1 kHz |
| Mounting Type | Through Hole |
| Height - Seated (Max) | 0.295" (7.50mm) |
