Description
FIXED IND 560UH 810MA 850 MOHM
Specifications
Parameter Guide
Understand the key electrical and mechanical specifications for 7447452561.
7447452561 has an inductance value of 560 µH. This value indicates how much magnetic energy the component can store and is one of the first parameters to compare when selecting an inductor.
7447452561 is rated for 810 mA. Current rating helps determine whether the part can carry the expected DC or RMS current without excessive heating or saturation risk.
7447452561 lists a DC resistance of 850mOhm Max. Lower DCR usually reduces conduction loss and improves efficiency in power circuits.

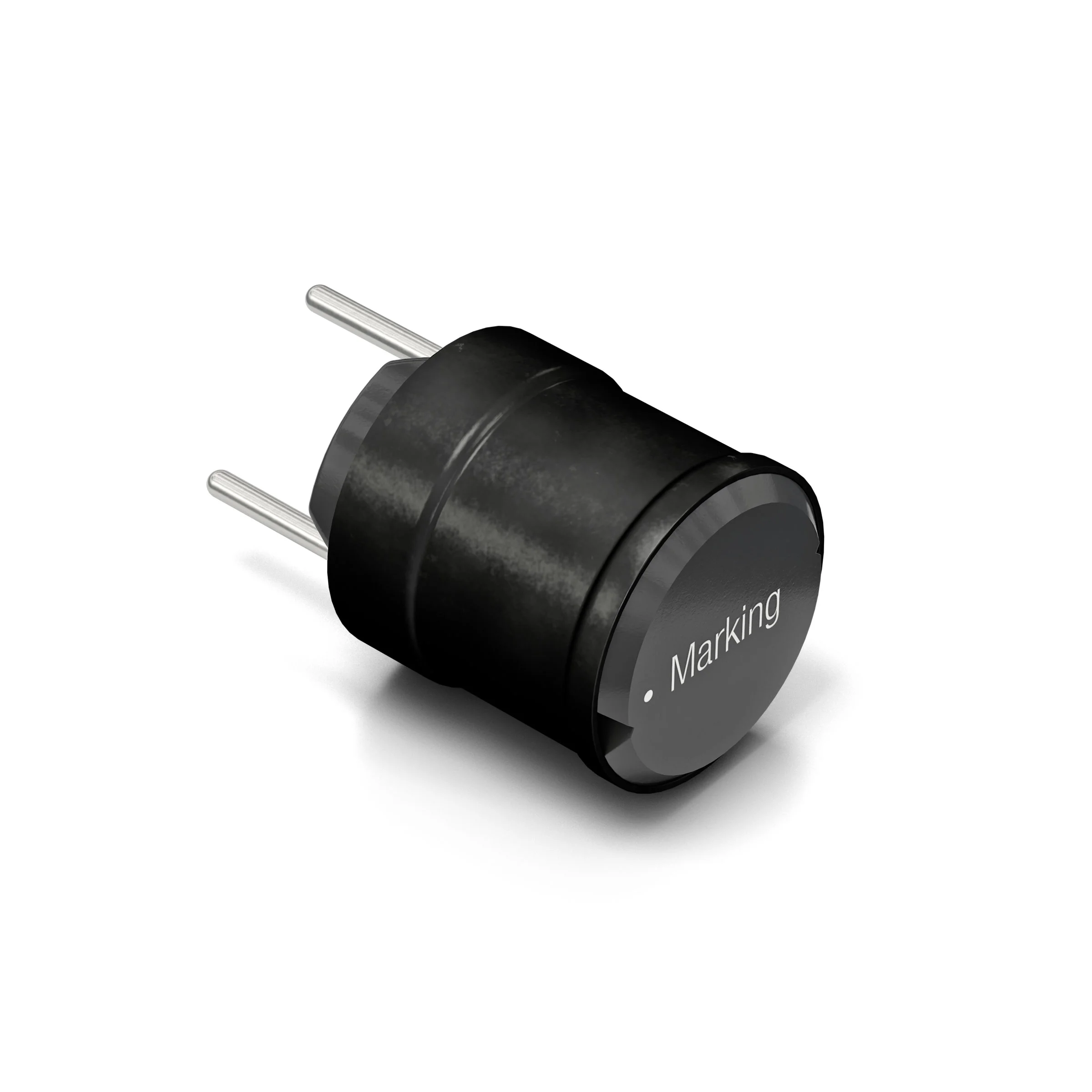

7447452561 uses a package or case of Radial, Vertical Cylinder. Package size affects PCB footprint, height clearance, thermal behavior, and compatibility with automated assembly.
Explore Related Datasheet Paths
Continue from 7447452561 to manufacturer, series, and broader datasheet collections.
Product Attributes
| Inductance | 560 µH |
| Tolerance | ±10% |
| Current Rating | 810 mA |
| DC Resistance (DCR) | 850mOhm Max |
| Saturation Current | 750mA |
| Operating Temperature | -40°C ~ 125°C |
| Dimensions | 0.374" Dia (9.50mm) |
| Case / Size | Radial, Vertical Cylinder |
| Package / Case | Radial, Vertical Cylinder |
| Supplier | Würth Elektronik |
| Description | FIXED IND 560UH 810MA 850 MOHM |
| Series | WE-TI |
| Product Status | Active |
| Type / Construction | Wirewound |
| Core Material | Nickel Zinc Ferrite (NiZn) |
| Shielding | Unshielded |
| Self Resonant Frequency | 1.9MHz |
| Inductance Test Frequency | 100 kHz |
| Mounting Type | Through Hole |
| Supplier Device Package | Radial |
| Height - Seated (Max) | 0.531" (13.50mm) |
