Description
FIXED IND 820UH 700MA 1.2 OHM TH
Specifications
Parameter Guide
Understand the key electrical and mechanical specifications for 7447452821.
7447452821 has an inductance value of 820 µH. This value indicates how much magnetic energy the component can store and is one of the first parameters to compare when selecting an inductor.
7447452821 is rated for 700 mA. Current rating helps determine whether the part can carry the expected DC or RMS current without excessive heating or saturation risk.
7447452821 lists a DC resistance of 1.2Ohm Max. Lower DCR usually reduces conduction loss and improves efficiency in power circuits.

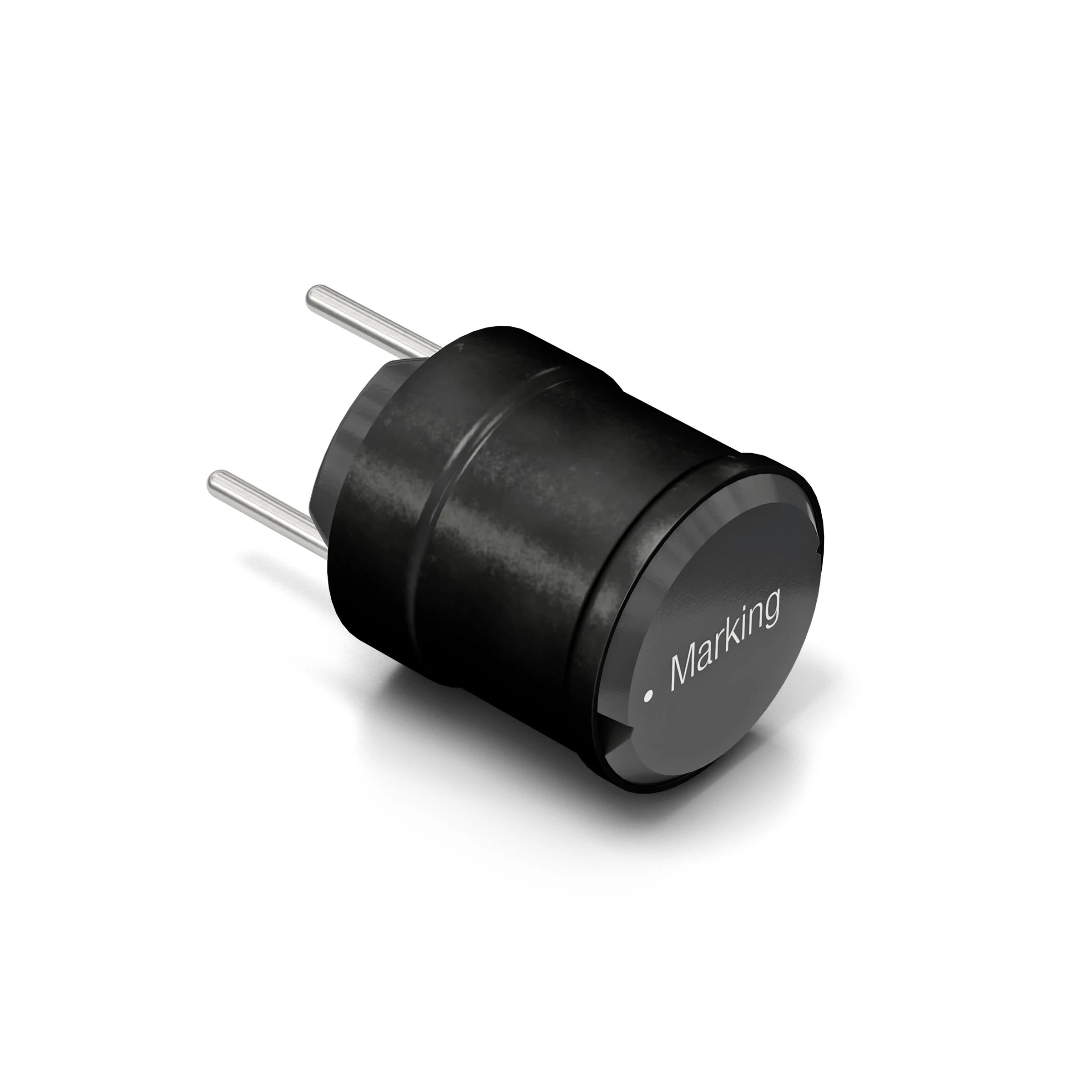

7447452821 uses a package or case of Radial, Vertical Cylinder. Package size affects PCB footprint, height clearance, thermal behavior, and compatibility with automated assembly.
Explore Related Datasheet Paths
Continue from 7447452821 to manufacturer, series, and broader datasheet collections.
Product Attributes
| Inductance | 820 µH |
| Tolerance | ±10% |
| Current Rating | 700 mA |
| DC Resistance (DCR) | 1.2Ohm Max |
| Saturation Current | 600mA |
| Operating Temperature | -40°C ~ 125°C |
| Dimensions | 0.374" Dia (9.50mm) |
| Case / Size | Radial, Vertical Cylinder |
| Package / Case | Radial, Vertical Cylinder |
| Supplier | Würth Elektronik |
| Description | FIXED IND 820UH 700MA 1.2 OHM TH |
| Series | WE-TI |
| Product Status | Active |
| Type / Construction | Wirewound |
| Core Material | Ferrite |
| Shielding | Unshielded |
| Self Resonant Frequency | 1.5MHz |
| Inductance Test Frequency | 100 kHz |
| Mounting Type | Through Hole |
| Supplier Device Package | Radial |
| Height - Seated (Max) | 0.531" (13.50mm) |
