Description

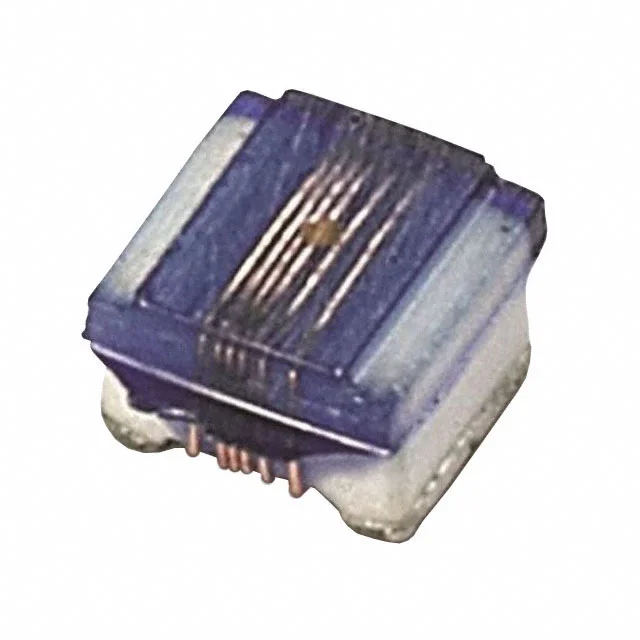

FIXED IND 2.2NH 800MA 60 MOHM
Specifications
Parameter Guide
Understand the key electrical and mechanical specifications for 744760022A.
744760022A has an inductance value of 2.2 nH. This value indicates how much magnetic energy the component can store and is one of the first parameters to compare when selecting an inductor.
744760022A is rated for 800 mA. Current rating helps determine whether the part can carry the expected DC or RMS current without excessive heating or saturation risk.
744760022A lists a DC resistance of 60mOhm Max. Lower DCR usually reduces conduction loss and improves efficiency in power circuits.
744760022A uses a package or case of 0805 (2012 Metric). Package size affects PCB footprint, height clearance, thermal behavior, and compatibility with automated assembly.
Explore Related Datasheet Paths
Continue from 744760022A to manufacturer, series, and broader datasheet collections.
Product Attributes
| Inductance | 2.2 nH |
| Tolerance | ±0.2nH |
| Current Rating | 800 mA |
| DC Resistance (DCR) | 60mOhm Max |
| Operating Temperature | -40°C ~ 125°C |
| Dimensions | 0.079" L x 0.049" W (2.00mm x 1.25mm) |
| Case / Size | 0805 (2012 Metric) |
| Package / Case | 0805 (2012 Metric) |
| Supplier | Würth Elektronik |
| Description | FIXED IND 2.2NH 800MA 60 MOHM |
| Series | WE-KI |
| Product Status | Active |
| Type / Construction | Drum Core, Wirewound |
| Core Material | Ceramic |
| Shielding | Unshielded |
| Q @ Frequency | 50 @ 1GHz |
| Self Resonant Frequency | 6GHz |
| Ratings | AEC-Q200 |
| Inductance Test Frequency | 250 MHz |
| Mounting Type | Surface Mount |
| Supplier Device Package | 0805 |
| Height - Seated (Max) | 0.055" (1.40mm) |
