Description

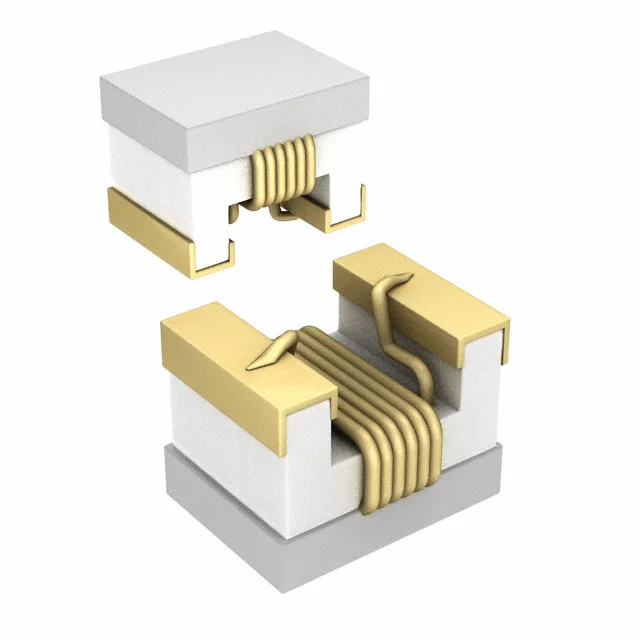

FIXED IND 56NH 500MA 340 MOHM
Specifications
Parameter Guide
Understand the key electrical and mechanical specifications for 74476015C.
74476015C has an inductance value of 56 nH. This value indicates how much magnetic energy the component can store and is one of the first parameters to compare when selecting an inductor.
74476015C is rated for 500 mA. Current rating helps determine whether the part can carry the expected DC or RMS current without excessive heating or saturation risk.
74476015C lists a DC resistance of 340mOhm Max. Lower DCR usually reduces conduction loss and improves efficiency in power circuits.
74476015C uses a package or case of Nonstandard. Package size affects PCB footprint, height clearance, thermal behavior, and compatibility with automated assembly.
Explore Related Datasheet Paths
Continue from 74476015C to manufacturer, series, and broader datasheet collections.
Product Attributes
| Inductance | 56 nH |
| Tolerance | ±5% |
| Current Rating | 500 mA |
| DC Resistance (DCR) | 340mOhm Max |
| Operating Temperature | -40°C ~ 125°C |
| Dimensions | 0.090" L x 0.067" W (2.29mm x 1.70mm) |
| Case / Size | Nonstandard |
| Package / Case | Nonstandard |
| Supplier | Würth Elektronik |
| Description | FIXED IND 56NH 500MA 340 MOHM |
| Series | WE-KI |
| Product Status | Active |
| Type / Construction | Drum Core, Wirewound |
| Core Material | Ceramic |
| Shielding | Unshielded |
| Q @ Frequency | 50 @ 500MHz |
| Self Resonant Frequency | 1.55GHz |
| Inductance Test Frequency | 200 MHz |
| Mounting Type | Surface Mount |
| Supplier Device Package | 0805 |
| Height - Seated (Max) | 0.058" (1.48mm) |
