Description

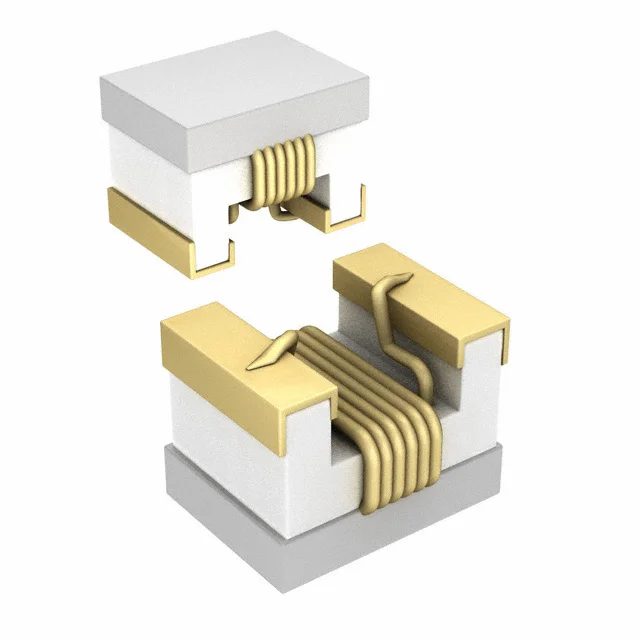

FIXED IND 270NH 350MA 1.29 OHM
Specifications
Parameter Guide
Understand the key electrical and mechanical specifications for 744760227C.
744760227C has an inductance value of 270 nH. This value indicates how much magnetic energy the component can store and is one of the first parameters to compare when selecting an inductor.
744760227C is rated for 350 mA. Current rating helps determine whether the part can carry the expected DC or RMS current without excessive heating or saturation risk.
744760227C lists a DC resistance of 1.29Ohm Max. Lower DCR usually reduces conduction loss and improves efficiency in power circuits.
744760227C uses a package or case of Nonstandard. Package size affects PCB footprint, height clearance, thermal behavior, and compatibility with automated assembly.
Explore Related Datasheet Paths
Continue from 744760227C to manufacturer, series, and broader datasheet collections.
Product Attributes
| Inductance | 270 nH |
| Tolerance | ±5% |
| Current Rating | 350 mA |
| DC Resistance (DCR) | 1.29Ohm Max |
| Operating Temperature | -40°C ~ 125°C |
| Dimensions | 0.090" L x 0.067" W (2.29mm x 1.70mm) |
| Case / Size | Nonstandard |
| Package / Case | Nonstandard |
| Supplier | Würth Elektronik |
| Description | FIXED IND 270NH 350MA 1.29 OHM |
| Series | WE-KI |
| Product Status | Active |
| Type / Construction | Drum Core, Wirewound |
| Core Material | Ceramic |
| Shielding | Unshielded |
| Q @ Frequency | 35 @ 250MHz |
| Self Resonant Frequency | 650MHz |
| Inductance Test Frequency | 100 MHz |
| Mounting Type | Surface Mount |
| Supplier Device Package | 0805 |
| Height - Seated (Max) | 0.058" (1.48mm) |
