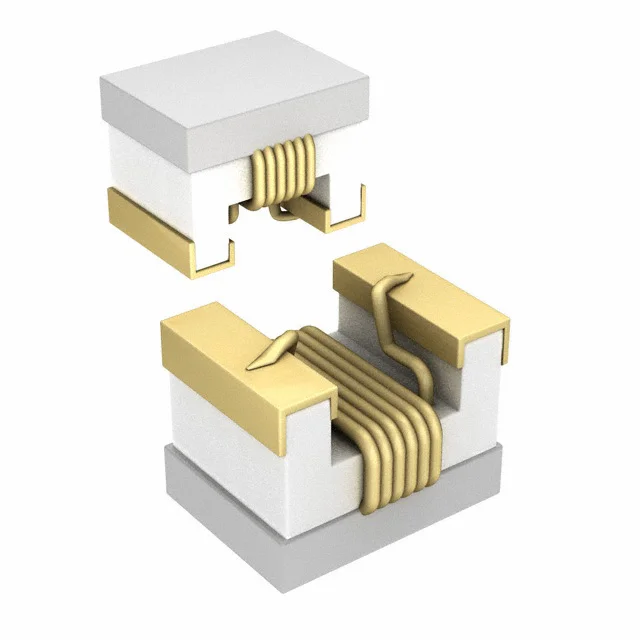

Description
FIXED IND 1.2UH 150MA 4.6 OHM
Specifications
Parameter Guide
Understand the key electrical and mechanical specifications for 744760312C.
744760312C has an inductance value of 1.2 µH. This value indicates how much magnetic energy the component can store and is one of the first parameters to compare when selecting an inductor.
744760312C is rated for 150 mA. Current rating helps determine whether the part can carry the expected DC or RMS current without excessive heating or saturation risk.
744760312C lists a DC resistance of 4.6Ohm Max. Lower DCR usually reduces conduction loss and improves efficiency in power circuits.
744760312C uses a package or case of Nonstandard. Package size affects PCB footprint, height clearance, thermal behavior, and compatibility with automated assembly.
Explore Related Datasheet Paths
Continue from 744760312C to manufacturer, series, and broader datasheet collections.
Product Attributes
| Inductance | 1.2 µH |
| Tolerance | ±5% |
| Current Rating | 150 mA |
| DC Resistance (DCR) | 4.6Ohm Max |
| Operating Temperature | -40°C ~ 125°C |
| Dimensions | 0.090" L x 0.067" W (2.29mm x 1.70mm) |
| Case / Size | Nonstandard |
| Package / Case | Nonstandard |
| Supplier | Würth Elektronik |
| Description | FIXED IND 1.2UH 150MA 4.6 OHM |
| Series | WE-KI |
| Product Status | Active |
| Type / Construction | Drum Core, Wirewound |
| Core Material | Ceramic |
| Shielding | Unshielded |
| Q @ Frequency | 20 @ 25MHz |
| Self Resonant Frequency | 200MHz |
| Inductance Test Frequency | 7.9 MHz |
| Mounting Type | Surface Mount |
| Supplier Device Package | 0805 |
| Height - Seated (Max) | 0.058" (1.48mm) |
