Description

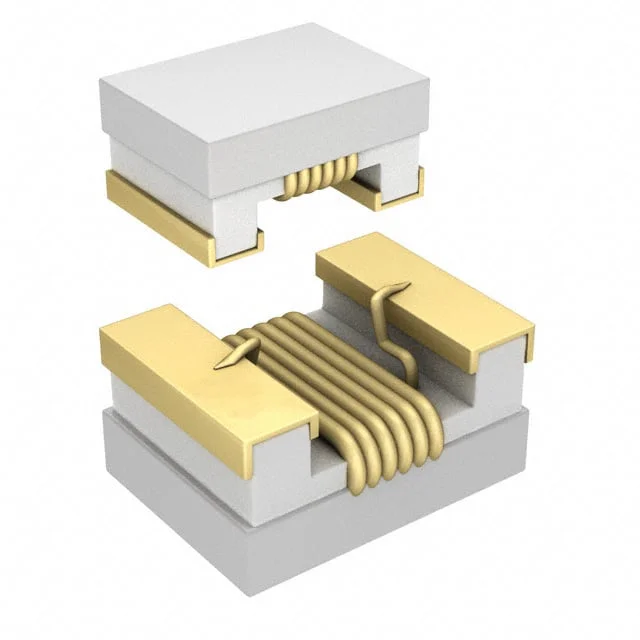

FIXED IND 3.9NH 700MA 70 MOHM
Specifications
Parameter Guide
Understand the key electrical and mechanical specifications for 744761039C.
744761039C has an inductance value of 3.9 nH. This value indicates how much magnetic energy the component can store and is one of the first parameters to compare when selecting an inductor.
744761039C is rated for 700 mA. Current rating helps determine whether the part can carry the expected DC or RMS current without excessive heating or saturation risk.
744761039C lists a DC resistance of 70mOhm Max. Lower DCR usually reduces conduction loss and improves efficiency in power circuits.
744761039C uses a package or case of 0603 (1608 Metric). Package size affects PCB footprint, height clearance, thermal behavior, and compatibility with automated assembly.
Explore Related Datasheet Paths
Continue from 744761039C to manufacturer, series, and broader datasheet collections.
Product Attributes
| Inductance | 3.9 nH |
| Tolerance | ±5% |
| Current Rating | 700 mA |
| DC Resistance (DCR) | 70mOhm Max |
| Operating Temperature | -40°C ~ 125°C |
| Dimensions | 0.065" L x 0.045" W (1.65mm x 1.15mm) |
| Case / Size | 0603 (1608 Metric) |
| Package / Case | 0603 (1608 Metric) |
| Supplier | Würth Elektronik |
| Description | FIXED IND 3.9NH 700MA 70 MOHM |
| Series | WE-KI |
| Product Status | Active |
| Type / Construction | Drum Core, Wirewound |
| Core Material | Ceramic |
| Shielding | Unshielded |
| Q @ Frequency | 22 @ 250MHz |
| Self Resonant Frequency | 6.9GHz |
| Inductance Test Frequency | 250 MHz |
| Mounting Type | Surface Mount |
| Supplier Device Package | 0603 (1608 Metric) |
| Height - Seated (Max) | 0.043" (1.10mm) |
