Description

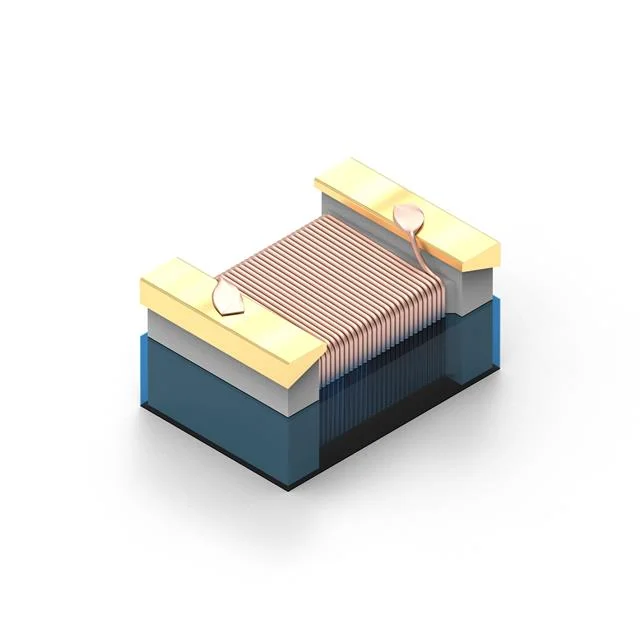

FIXED IND 36NH 600MA 220 MOHM
Specifications
Parameter Guide
Understand the key electrical and mechanical specifications for 744761136A.
744761136A has an inductance value of 36 nH. This value indicates how much magnetic energy the component can store and is one of the first parameters to compare when selecting an inductor.
744761136A is rated for 600 mA. Current rating helps determine whether the part can carry the expected DC or RMS current without excessive heating or saturation risk.
744761136A lists a DC resistance of 220mOhm Max. Lower DCR usually reduces conduction loss and improves efficiency in power circuits.
744761136A uses a package or case of 0603 (1608 Metric). Package size affects PCB footprint, height clearance, thermal behavior, and compatibility with automated assembly.
Explore Related Datasheet Paths
Continue from 744761136A to manufacturer, series, and broader datasheet collections.
Product Attributes
| Inductance | 36 nH |
| Tolerance | ±5% |
| Current Rating | 600 mA |
| DC Resistance (DCR) | 220mOhm Max |
| Operating Temperature | -40°C ~ 125°C |
| Dimensions | 0.063" L x 0.041" W (1.60mm x 1.05mm) |
| Case / Size | 0603 (1608 Metric) |
| Package / Case | 0603 (1608 Metric) |
| Supplier | Würth Elektronik |
| Description | FIXED IND 36NH 600MA 220 MOHM |
| Series | WE-KI |
| Product Status | Active |
| Type / Construction | Wirewound |
| Core Material | Ceramic |
| Shielding | Unshielded |
| Q @ Frequency | 36 @ 250MHz |
| Self Resonant Frequency | 2.3GHz |
| Ratings | AEC-Q200 |
| Inductance Test Frequency | 250 MHz |
| Mounting Type | Surface Mount |
| Supplier Device Package | 0603 |
| Height - Seated (Max) | 0.049" (1.25mm) |
