Description

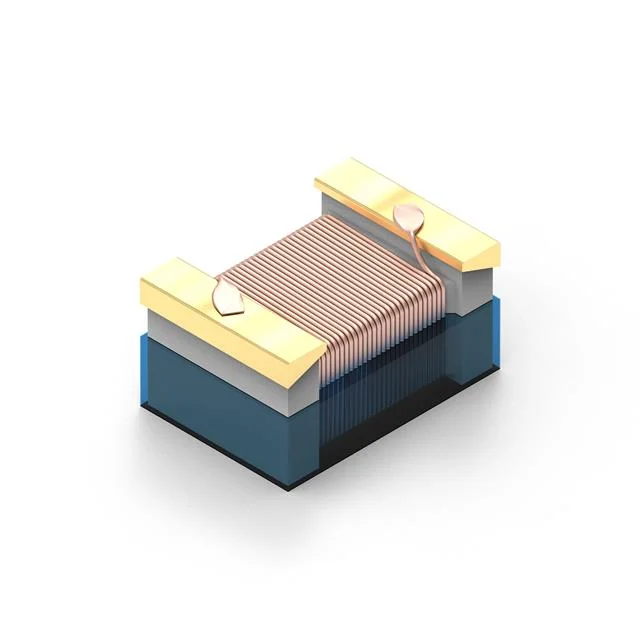

FIXED IND 56NH 600MA 310 MOHM
Specifications
Parameter Guide
Understand the key electrical and mechanical specifications for 744761156A.
744761156A has an inductance value of 56 nH. This value indicates how much magnetic energy the component can store and is one of the first parameters to compare when selecting an inductor.
744761156A is rated for 600 mA. Current rating helps determine whether the part can carry the expected DC or RMS current without excessive heating or saturation risk.
744761156A lists a DC resistance of 310mOhm Max. Lower DCR usually reduces conduction loss and improves efficiency in power circuits.
744761156A uses a package or case of 0603 (1608 Metric). Package size affects PCB footprint, height clearance, thermal behavior, and compatibility with automated assembly.
Explore Related Datasheet Paths
Continue from 744761156A to manufacturer, series, and broader datasheet collections.
Product Attributes
| Inductance | 56 nH |
| Tolerance | ±5% |
| Current Rating | 600 mA |
| DC Resistance (DCR) | 310mOhm Max |
| Operating Temperature | -40°C ~ 125°C |
| Dimensions | 0.063" L x 0.041" W (1.60mm x 1.05mm) |
| Case / Size | 0603 (1608 Metric) |
| Package / Case | 0603 (1608 Metric) |
| Supplier | Würth Elektronik |
| Description | FIXED IND 56NH 600MA 310 MOHM |
| Series | WE-KI |
| Product Status | Active |
| Type / Construction | Wirewound |
| Core Material | Ceramic |
| Shielding | Unshielded |
| Q @ Frequency | 40 @ 200MHz |
| Self Resonant Frequency | 1.9GHz |
| Ratings | AEC-Q200 |
| Inductance Test Frequency | 200 MHz |
| Mounting Type | Surface Mount |
| Supplier Device Package | 0603 |
| Height - Seated (Max) | 0.049" (1.25mm) |
