Description

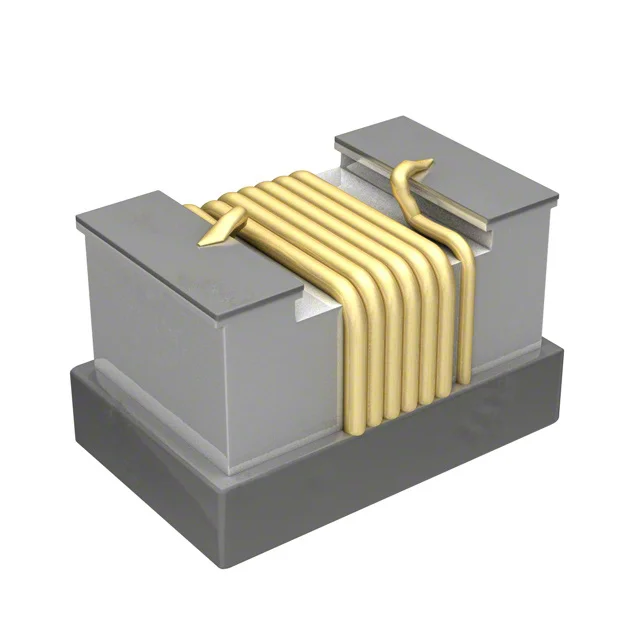

FIXED IND 6.8NH 1A 60 MOHM SMD
Specifications
Parameter Guide
Understand the key electrical and mechanical specifications for 744762068A.
744762068A has an inductance value of 6.8 nH. This value indicates how much magnetic energy the component can store and is one of the first parameters to compare when selecting an inductor.
744762068A is rated for 1 A. Current rating helps determine whether the part can carry the expected DC or RMS current without excessive heating or saturation risk.
744762068A lists a DC resistance of 60mOhm Max. Lower DCR usually reduces conduction loss and improves efficiency in power circuits.
744762068A uses a package or case of 1008 (2520 Metric). Package size affects PCB footprint, height clearance, thermal behavior, and compatibility with automated assembly.
Explore Related Datasheet Paths
Continue from 744762068A to manufacturer, series, and broader datasheet collections.
Product Attributes
| Inductance | 6.8 nH |
| Tolerance | ±5% |
| Current Rating | 1 A |
| DC Resistance (DCR) | 60mOhm Max |
| Operating Temperature | -40°C ~ 125°C |
| Dimensions | 0.102" L x 0.083" W (2.60mm x 2.10mm) |
| Case / Size | 1008 (2520 Metric) |
| Package / Case | 1008 (2520 Metric) |
| Supplier | Würth Elektronik |
| Description | FIXED IND 6.8NH 1A 60 MOHM SMD |
| Series | WE-KI |
| Product Status | Active |
| Type / Construction | Drum Core, Wirewound |
| Core Material | Ceramic |
| Shielding | Unshielded |
| Q @ Frequency | 50 @ 1GHz |
| Self Resonant Frequency | 5.5GHz |
| Ratings | AEC-Q200 |
| Inductance Test Frequency | 100 MHz |
| Mounting Type | Surface Mount |
| Supplier Device Package | 1008 (2520 Metric) |
| Height - Seated (Max) | 0.075" (1.90mm) |
