Description

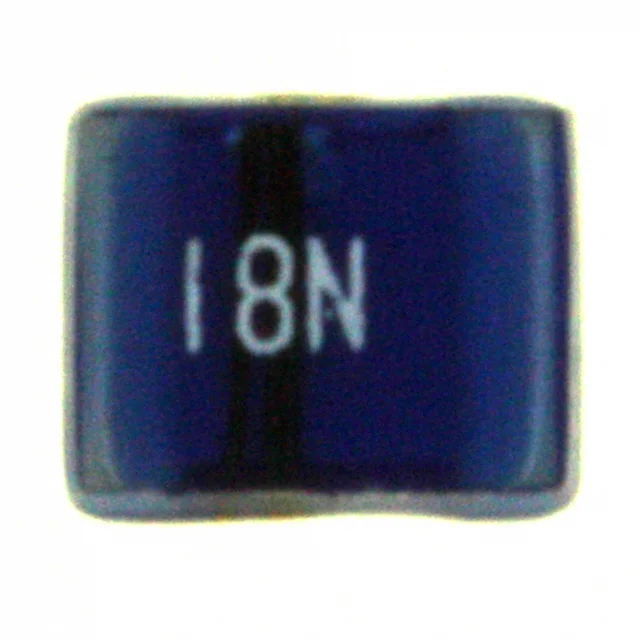

FIXED IND 18NH 1A 100 MOHM SMD
Specifications
Parameter Guide
Understand the key electrical and mechanical specifications for 744762118A.
744762118A has an inductance value of 18 nH. This value indicates how much magnetic energy the component can store and is one of the first parameters to compare when selecting an inductor.
744762118A is rated for 1 A. Current rating helps determine whether the part can carry the expected DC or RMS current without excessive heating or saturation risk.
744762118A lists a DC resistance of 100mOhm Max. Lower DCR usually reduces conduction loss and improves efficiency in power circuits.
744762118A uses a package or case of 1008 (2520 Metric). Package size affects PCB footprint, height clearance, thermal behavior, and compatibility with automated assembly.
Explore Related Datasheet Paths
Continue from 744762118A to manufacturer, series, and broader datasheet collections.
Product Attributes
| Inductance | 18 nH |
| Tolerance | ±5% |
| Current Rating | 1 A |
| DC Resistance (DCR) | 100mOhm Max |
| Operating Temperature | -40°C ~ 125°C |
| Dimensions | 0.102" L x 0.083" W (2.60mm x 2.10mm) |
| Case / Size | 1008 (2520 Metric) |
| Package / Case | 1008 (2520 Metric) |
| Supplier | Würth Elektronik |
| Description | FIXED IND 18NH 1A 100 MOHM SMD |
| Series | WE-KI |
| Product Status | Active |
| Type / Construction | Drum Core, Wirewound |
| Core Material | Ceramic |
| Shielding | Unshielded |
| Q @ Frequency | 60 @ 350MHz |
| Self Resonant Frequency | 2.7GHz |
| Ratings | AEC-Q200 |
| Inductance Test Frequency | 100 MHz |
| Mounting Type | Surface Mount |
| Supplier Device Package | 1008 (2520 Metric) |
| Height - Seated (Max) | 0.075" (1.90mm) |
