Description

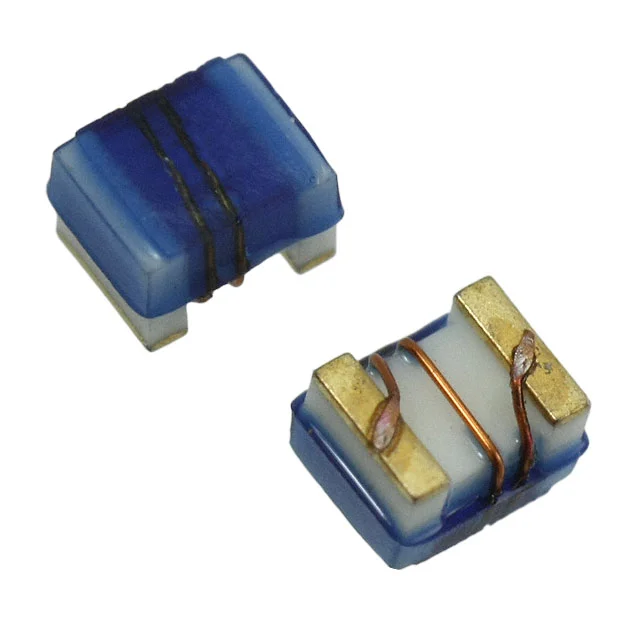

FIXED IND 330NH 500MA 900 MOHM
Specifications
Parameter Guide
Understand the key electrical and mechanical specifications for 744762233GA.
744762233GA has an inductance value of 330 nH. This value indicates how much magnetic energy the component can store and is one of the first parameters to compare when selecting an inductor.
744762233GA is rated for 500 mA. Current rating helps determine whether the part can carry the expected DC or RMS current without excessive heating or saturation risk.
744762233GA lists a DC resistance of 900mOhm Max. Lower DCR usually reduces conduction loss and improves efficiency in power circuits.
744762233GA uses a package or case of 1008 (2520 Metric). Package size affects PCB footprint, height clearance, thermal behavior, and compatibility with automated assembly.
Explore Related Datasheet Paths
Continue from 744762233GA to manufacturer, series, and broader datasheet collections.
Product Attributes
| Inductance | 330 nH |
| Tolerance | ±2% |
| Current Rating | 500 mA |
| DC Resistance (DCR) | 900mOhm Max |
| Operating Temperature | -40°C ~ 125°C |
| Dimensions | 0.098" L x 0.079" W (2.50mm x 2.00mm) |
| Case / Size | 1008 (2520 Metric) |
| Package / Case | 1008 (2520 Metric) |
| Supplier | Würth Elektronik |
| Description | FIXED IND 330NH 500MA 900 MOHM |
| Series | WE-KI |
| Product Status | Active |
| Type / Construction | Drum Core, Wirewound |
| Core Material | Ceramic |
| Shielding | Unshielded |
| Q @ Frequency | 45 @ 100MHz |
| Self Resonant Frequency | 570MHz |
| Ratings | AEC-Q200 |
| Inductance Test Frequency | 25 MHz |
| Mounting Type | Surface Mount |
| Supplier Device Package | 1008 |
| Height - Seated (Max) | 0.071" (1.80mm) |
