Description

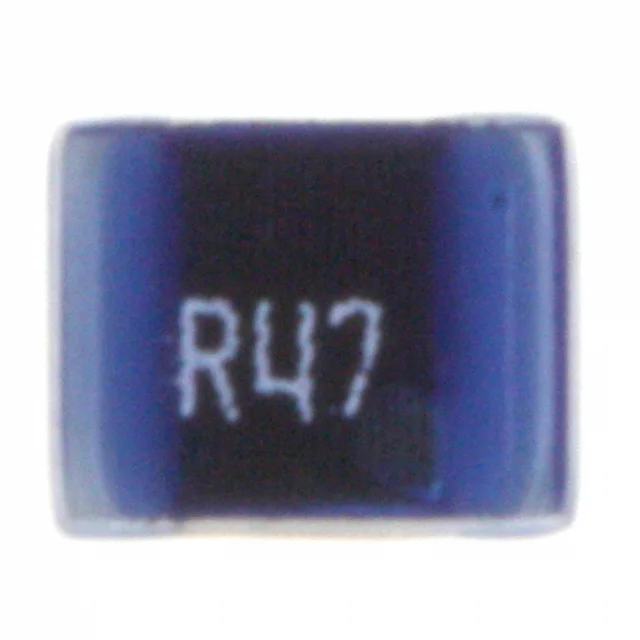

FIXED IND 470NH 420MA 1.17 OHM
Specifications
Parameter Guide
Understand the key electrical and mechanical specifications for 744762247A.
744762247A has an inductance value of 470 nH. This value indicates how much magnetic energy the component can store and is one of the first parameters to compare when selecting an inductor.
744762247A is rated for 420 mA. Current rating helps determine whether the part can carry the expected DC or RMS current without excessive heating or saturation risk.
744762247A lists a DC resistance of 1.17Ohm Max. Lower DCR usually reduces conduction loss and improves efficiency in power circuits.
744762247A uses a package or case of 1008 (2520 Metric). Package size affects PCB footprint, height clearance, thermal behavior, and compatibility with automated assembly.
Explore Related Datasheet Paths
Continue from 744762247A to manufacturer, series, and broader datasheet collections.
Product Attributes
| Inductance | 470 nH |
| Tolerance | ±5% |
| Current Rating | 420 mA |
| DC Resistance (DCR) | 1.17Ohm Max |
| Operating Temperature | -40°C ~ 125°C |
| Dimensions | 0.102" L x 0.083" W (2.60mm x 2.10mm) |
| Case / Size | 1008 (2520 Metric) |
| Package / Case | 1008 (2520 Metric) |
| Supplier | Würth Elektronik |
| Description | FIXED IND 470NH 420MA 1.17 OHM |
| Series | WE-KI |
| Product Status | Active |
| Type / Construction | Drum Core, Wirewound |
| Core Material | Ceramic |
| Shielding | Unshielded |
| Q @ Frequency | 45 @ 100MHz |
| Self Resonant Frequency | 480MHz |
| Ratings | AEC-Q200 |
| Inductance Test Frequency | 25 MHz |
| Mounting Type | Surface Mount |
| Supplier Device Package | 1008 (2520 Metric) |
| Height - Seated (Max) | 0.075" (1.90mm) |
