Description

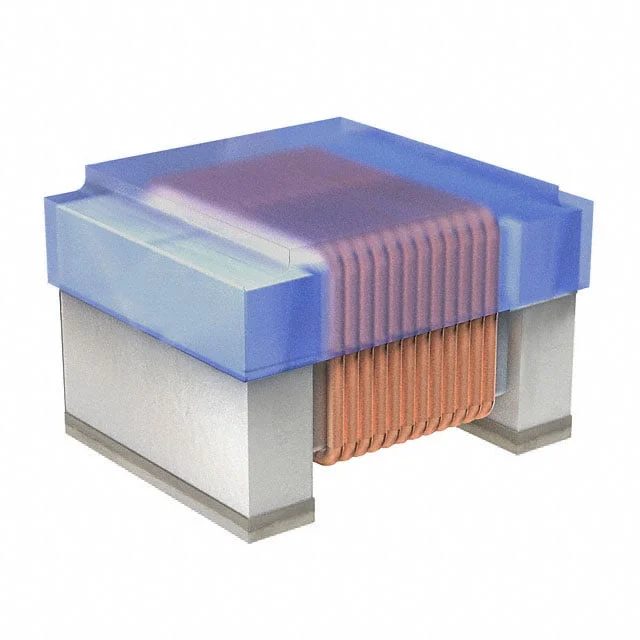

FIXED IND 7.5NH 680MA 104 MOHM
Specifications
Parameter Guide
Understand the key electrical and mechanical specifications for 744765075GA.
744765075GA has an inductance value of 7.5 nH. This value indicates how much magnetic energy the component can store and is one of the first parameters to compare when selecting an inductor.
744765075GA is rated for 680 mA. Current rating helps determine whether the part can carry the expected DC or RMS current without excessive heating or saturation risk.
744765075GA lists a DC resistance of 104mOhm Max. Lower DCR usually reduces conduction loss and improves efficiency in power circuits.
744765075GA uses a package or case of 0402 (1005 Metric). Package size affects PCB footprint, height clearance, thermal behavior, and compatibility with automated assembly.
Explore Related Datasheet Paths
Continue from 744765075GA to manufacturer, series, and broader datasheet collections.
Product Attributes
| Inductance | 7.5 nH |
| Tolerance | ±0.2nH |
| Current Rating | 680 mA |
| DC Resistance (DCR) | 104mOhm Max |
| Operating Temperature | -40°C ~ 125°C |
| Dimensions | 0.039" L x 0.022" W (1.00mm x 0.55mm) |
| Case / Size | 0402 (1005 Metric) |
| Package / Case | 0402 (1005 Metric) |
| Supplier | Würth Elektronik |
| Description | FIXED IND 7.5NH 680MA 104 MOHM |
| Series | WE-KI |
| Product Status | Active |
| Type / Construction | Drum Core, Wirewound |
| Core Material | Ceramic |
| Shielding | Unshielded |
| Q @ Frequency | 25 @ 250MHz |
| Self Resonant Frequency | 5.8GHz |
| Ratings | AEC-Q200 |
| Inductance Test Frequency | 250 MHz |
| Mounting Type | Surface Mount |
| Supplier Device Package | 0402 |
| Height - Seated (Max) | 0.024" (0.60mm) |
