Description

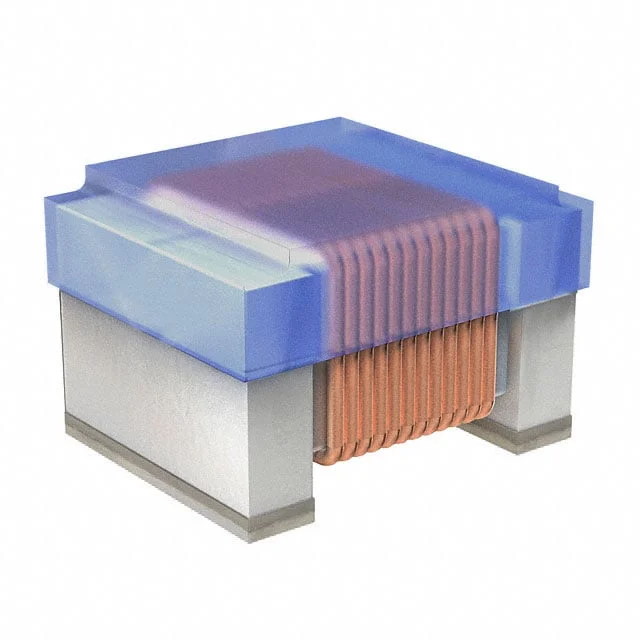

FIXED IND 47NH 100MA 830 MOHM
Specifications
Parameter Guide
Understand the key electrical and mechanical specifications for 744765147GA.
744765147GA has an inductance value of 47 nH. This value indicates how much magnetic energy the component can store and is one of the first parameters to compare when selecting an inductor.
744765147GA is rated for 100 mA. Current rating helps determine whether the part can carry the expected DC or RMS current without excessive heating or saturation risk.
744765147GA lists a DC resistance of 830mOhm Max. Lower DCR usually reduces conduction loss and improves efficiency in power circuits.
744765147GA uses a package or case of 0402 (1005 Metric). Package size affects PCB footprint, height clearance, thermal behavior, and compatibility with automated assembly.
Explore Related Datasheet Paths
Continue from 744765147GA to manufacturer, series, and broader datasheet collections.
Product Attributes
| Inductance | 47 nH |
| Tolerance | ±2% |
| Current Rating | 100 mA |
| DC Resistance (DCR) | 830mOhm Max |
| Operating Temperature | -40°C ~ 125°C |
| Dimensions | 0.039" L x 0.022" W (1.00mm x 0.55mm) |
| Case / Size | 0402 (1005 Metric) |
| Package / Case | 0402 (1005 Metric) |
| Supplier | Würth Elektronik |
| Description | FIXED IND 47NH 100MA 830 MOHM |
| Series | WE-KI |
| Product Status | Active |
| Type / Construction | Drum Core, Wirewound |
| Core Material | Ceramic |
| Shielding | Unshielded |
| Q @ Frequency | 26 @ 200MHz |
| Self Resonant Frequency | 2.1GHz |
| Ratings | AEC-Q200 |
| Inductance Test Frequency | 200 MHz |
| Mounting Type | Surface Mount |
| Supplier Device Package | 0402 |
| Height - Seated (Max) | 0.024" (0.60mm) |
